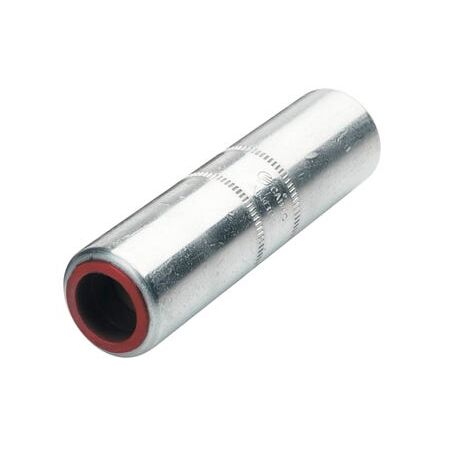

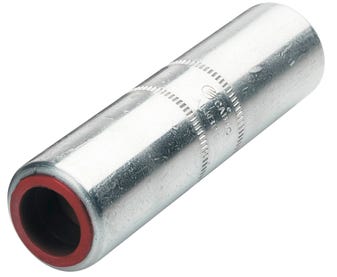

Aluminium Link 10mm² | 99.6% Pure Aluminium | Barrier Type Design & Easy Insertion by Cabac
Cabac Aluminium Link 10mm2 is a high-quality barrier type link made from 99.6% pure electrical grade aluminium, designed for reliable electrical connections in aluminium conductors with enhanced durability and reduced contact resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Link 10mm2
Brand: Cabac
SKU: ALK10
Alternatively Known As: Aluminium Electrical Link 10mm2, Aluminium Barrier Link, Aluminium Cable Link 10mm², Aluminium Crimp Link
Technical Specifications
- Nominal Conductor Size: 10mm²
- Material: 99.6% pure electrical grade aluminium rod
- Tensile Strength: 110 MPa
- Ductile Strength: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Forging process eliminates imperfections in the metal structure for long-term electrical reliability
- Barrier type design forces jointing compound back along conductor strands during crimping
- Unique 'Funnel Entry' design for easy insertion of stranded sector cable
- Barrels chemically treated to reduce contact resistance and filled with jointing compound
- Crimping recommended with standard hexagonal dies from the centre outwards
Professional Installation Requirements
- Should be installed by a qualified electrician using standard hexagonal crimping dies to ensure proper jointing and electrical safety.
Applications
- Electrical connections for stranded sector and circular stranded aluminium conductors
- Use in oil filled cables as a barrier link
- Suitable for electrical power connectivity in industrial and commercial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Improves electrical efficiency reducing energy loss at joints
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Aluminium Link 10mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor joints.
