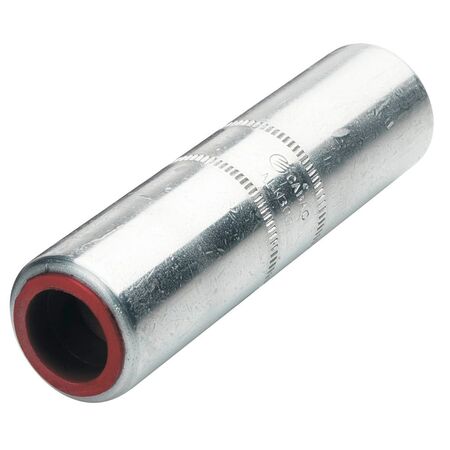

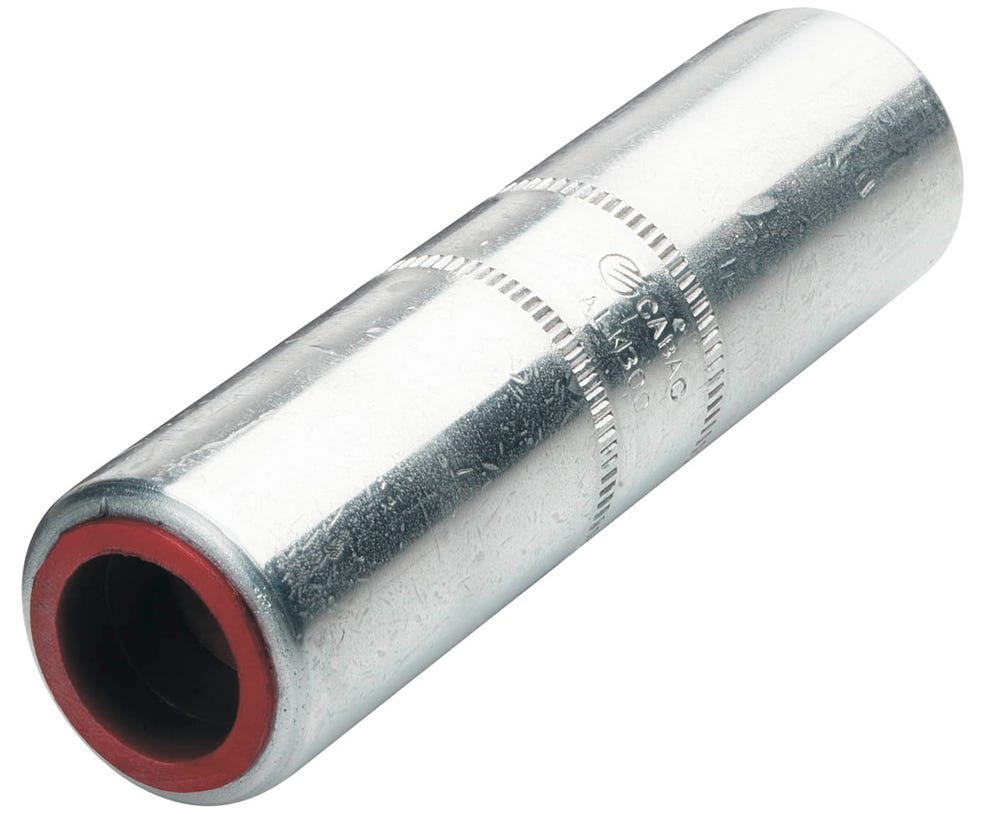

Aluminium Link 150mm2 | 99.6% Pure Electrical Grade | Barrier Type Design | @Each of 1 | by Cabac
The Aluminium Link 150mm2 is designed for reliable electrical connections, featuring a barrier type design and made from 99.6% pure electrical grade aluminium. Ideal for stranded sector and circular stranded aluminium conductors, this link ensures long-term electrical reliability and reduced contact resistance, making it perfect for power distribution and electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium rod
- Type: Barrier type link
- Suitable for stranded sector and circular stranded aluminium conductors
- Crimping method: Standard Australian/NZ hexagonal dies, crimp from centre outwards
- Barrel treated chemically to reduce contact resistance
- Filled with jointing compound and capped
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.5 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Forging process eliminates imperfections in the metal structure for long-term electrical reliability
- Barrier type design forces jointing compound back along conductor strands during crimping
- Unique funnel entry design for easy insertion of stranded sector cable
- Barrels chemically treated to reduce contact resistance
- Filled with jointing compound and capped for enhanced joint protection
- Crimping recommended from centre outwards using standard hexagonal dies
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure reliable and safe electrical connections.
Applications
- Electrical connections for stranded sector and circular stranded aluminium conductors
- Used in power distribution and electrical installations requiring reliable aluminium conductor joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improves electrical efficiency by reducing contact resistance and hot joints, reducing energy loss
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium Link 150mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring durable aluminium conductor joints.
