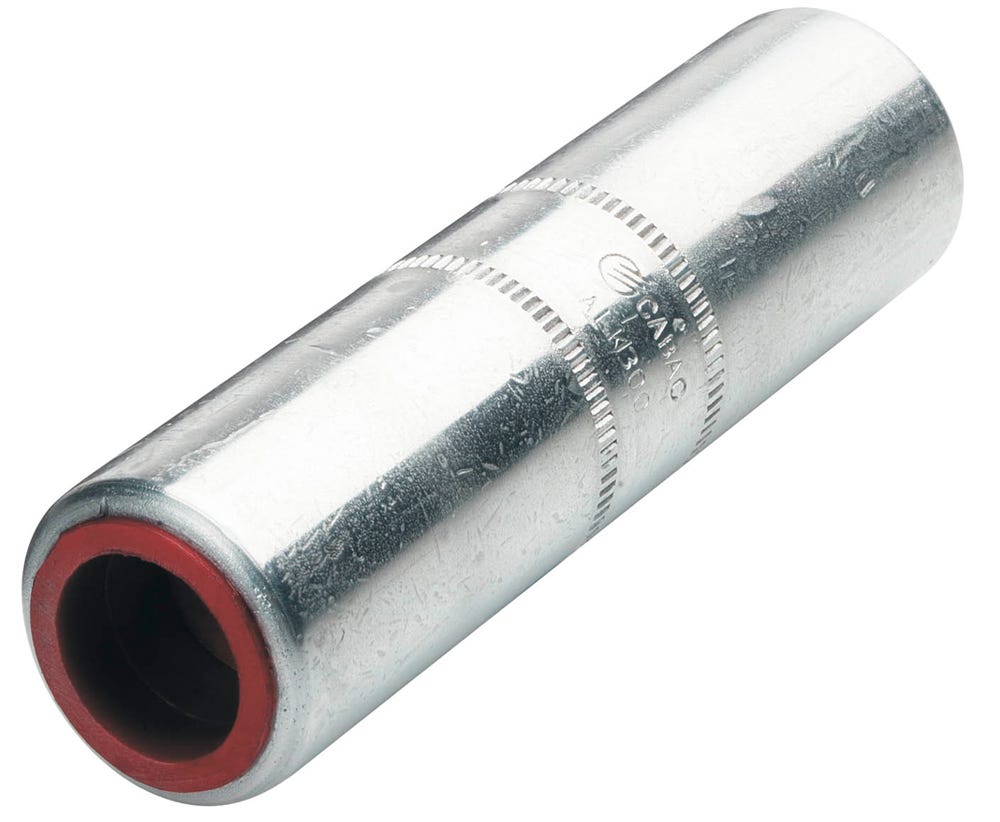

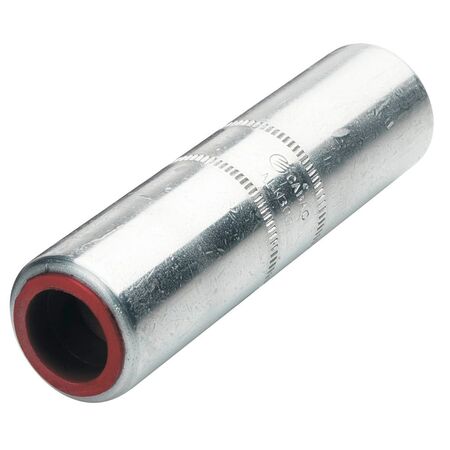

Aluminium Link 500mm2 | 99.6% Pure Aluminium | Barrier Type Design | Chemically Treated | @Each of 1 | by Cabac
The Aluminium Link 500mm2 is designed for reliable electrical power connections, featuring 99.6% pure electrical grade aluminium and a barrier type design for stranded conductors. Ideal for commercial and industrial applications, this link ensures secure connections with reduced contact resistance, making it perfect for oil-filled cables and other jointing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium rod
- Type: Barrier type link for stranded sector and circular stranded aluminium conductors
- Crimping: Use standard Australian/NZ hexagonal dies, crimp from centre outwards
- Surface Treatment: Chemically treated barrels to reduce contact resistance
- Jointing Compound: Filled and capped barrels to ensure secure electrical connection
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 1.2 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Forging process eliminates imperfections in metal structure for long-term reliability
- Barrier design forces jointing compound back along conductor strands during crimping
- Unique funnel entry design for easy insertion of stranded sector cable
- Barrels chemically treated to reduce contact resistance and filled with jointing compound
- Crimping recommended from centre outwards using standard hexagonal dies
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and compliant connections.
Applications
- Electrical power connections for stranded sector and circular stranded aluminium conductors
- Used in oil-filled cables and other industrial electrical jointing applications
- Suitable for electrical and power connectivity in commercial and industrial settings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improved joint reliability reduces need for replacements and waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium Link 500mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor joints.
