Aluminium Link 50mm2 | 99.6% Pure Aluminium | Barrier Design | Funnel Entry | @Each of 1 | by Cabac

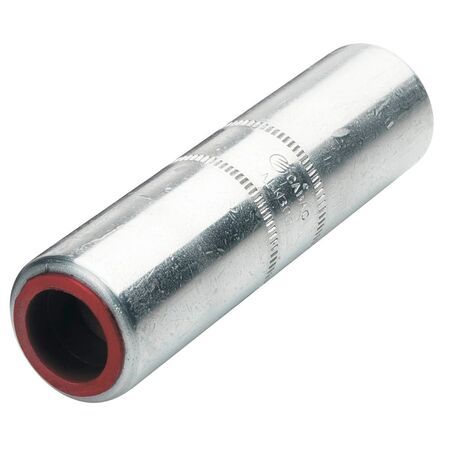

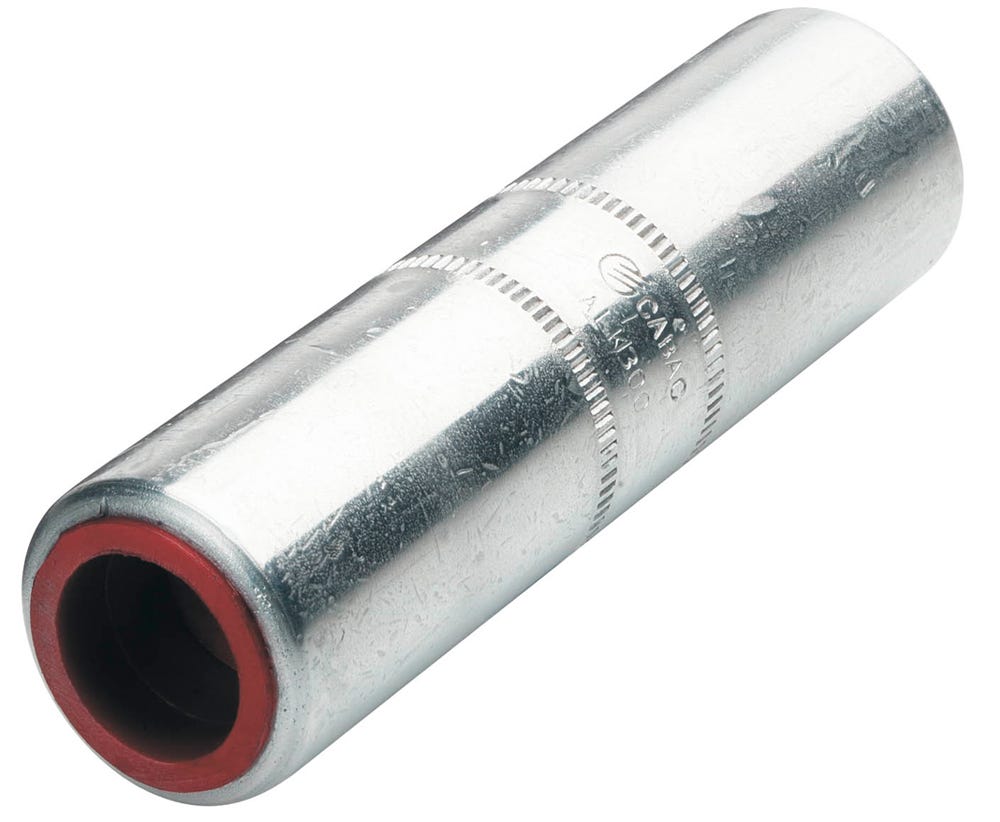

The Aluminium Link 50mm2 is designed for reliable electrical power connections, featuring a barrier type design that facilitates the ingress of jointing compound. Manufactured from 99.6% pure electrical grade aluminium, it ensures minimal contact resistance and long-term reliability. Ideal for stranded sector and circular stranded aluminium conductors, this link is perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Link 50mm2 | 99.6% Pure Aluminium | Barrier Design | Funnel Entry | @Each of 1 | by Cabac
Brand: Cabac
SKU: ALK50
Alternatively Known As: Aluminium Crimp Link 50mm2, Aluminium Barrier Link, Electrical Aluminium Connector 50mm2
Technical Specifications
- Material: 99.6% pure electrical grade aluminium rod
- Type: Barrier type link with funnel entry
- Suitable for stranded sector and circular stranded aluminium conductors
- Crimping: Use standard hexagonal dies, crimp from centre outwards
- Surface treatment: Chemically treated barrels filled with jointing compound
- Manufacturing process: Forged to eliminate metal imperfections
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.15 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Barrier design facilitates ingress of jointing compound in joint
- Unique 'Funnel Entry' design for easy insertion of stranded sector cable
- Crimp from centre mark outwards with standard Australian/NZ hexagonal dies
- Forging process eliminates imperfections in metal structure for long-term reliability
- Barrels chemically treated to reduce contact resistance and filled with jointing compound
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and reliable connections.
Applications
- Electrical power connections for stranded sector and circular stranded aluminium conductors
- Suitable for use with oil-filled cables and other industrial electrical installations
- Ideal for electrical jointing and crimping in power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Improves electrical efficiency by reducing contact resistance, minimizing energy loss
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium Link 50mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial settings.
