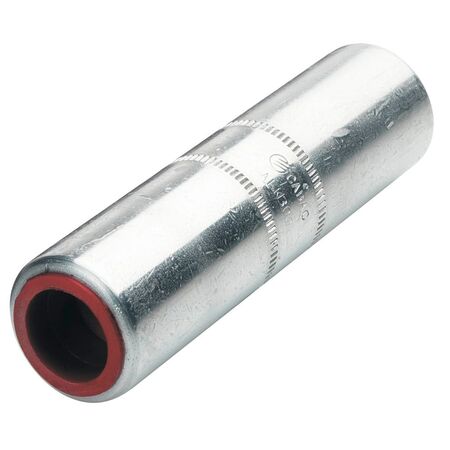

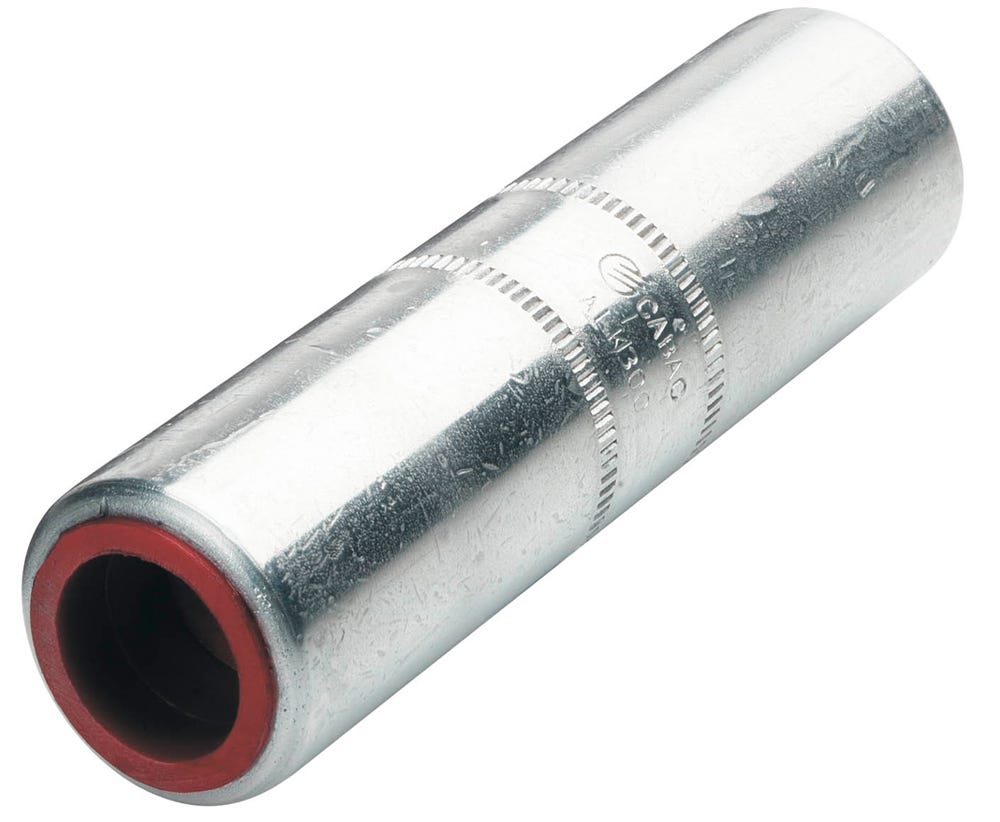

Aluminium Link 630mm2 | 99.6% Pure Aluminium | Barrier Type Design | Funnel Entry for Stranded Cable | @Each of 1 | by Cabac
The Aluminium Link 630mm2 is designed for reliable electrical power connectivity, featuring a barrier type design and a unique funnel entry for easy insertion of stranded sector cables. Manufactured from 99.6% pure electrical grade aluminium, this link ensures low resistance connections, making it ideal for industrial electrical installations and oil-filled cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium rod
- Type: Barrier type link
- Design: Funnel entry for stranded sector cable
- Manufacturing: Forged to eliminate metal imperfections
- Crimping: Use standard Australian/NZ hexagonal dies, crimp from centre outwards
- Surface Treatment: Chemically treated barrels filled with jointing compound
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 2.5 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Forging process eliminates imperfections in metal structure for long-term reliability
- Barrier type design forces jointing compound back along conductor strands during crimping
- Unique funnel entry design for easy insertion of stranded sector cable
- Barrels chemically treated to reduce contact resistance and filled with jointing compound
- Crimping recommended from centre outwards using standard hexagonal dies
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure reliable electrical connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Used in electrical joints requiring reliable and low resistance connections
- Suitable for oil-filled cables and other industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Improves electrical efficiency by reducing contact resistance, lowering energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Aluminium Link 630mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring durable aluminium conductor joints.
