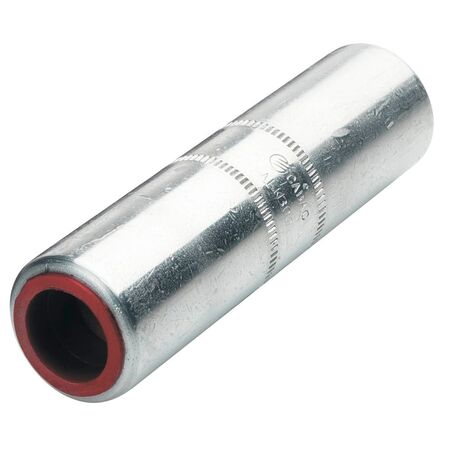

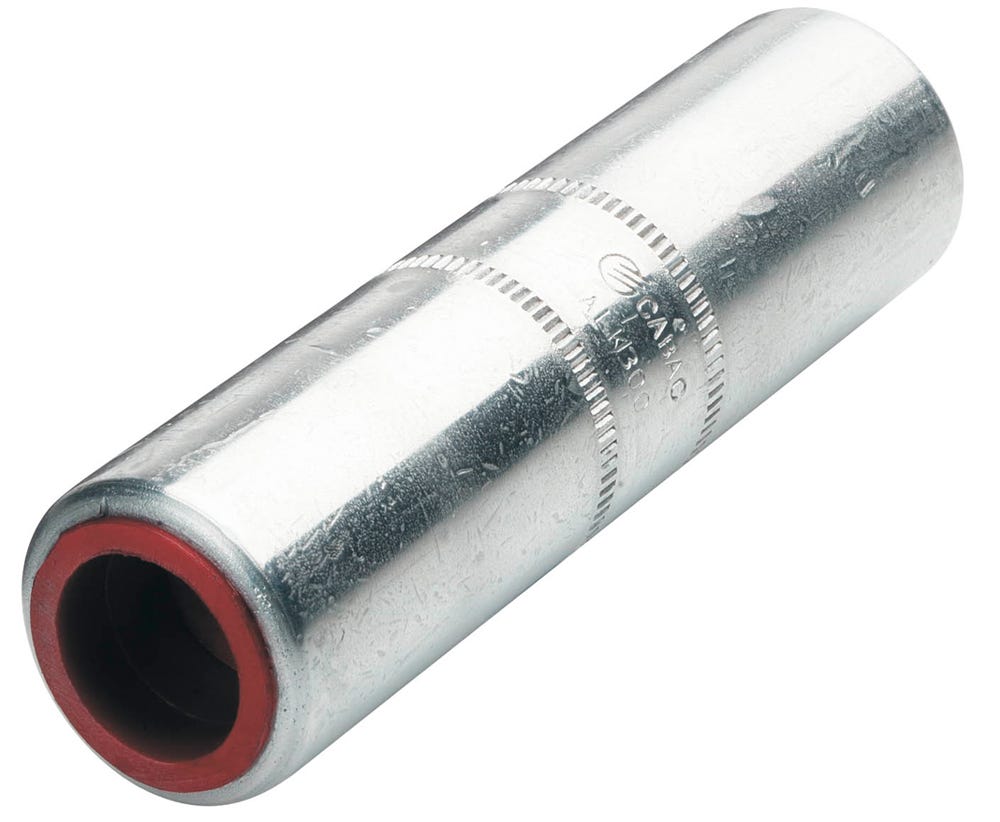

Aluminium Link 800mm2 | 99.6% Pure Aluminium | Barrier Design | Funnel Entry | @Each of 1 | by Cabac
The Aluminium Link 800mm2 is designed for reliable electrical power connectivity, featuring a barrier design that facilitates the ingress of jointing compound. Made from 99.6% pure electrical grade aluminium, this link is ideal for stranded sector and circular stranded aluminium conductors, ensuring long-term reliability and reduced contact resistance. Perfect for industrial electrical installations, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium rod
- Type: Barrier type link with funnel entry
- Compatibility: For stranded sector and circular stranded aluminium conductors
- Crimping: Use standard Australian/NZ hexagonal dies, crimp from centre outwards
- Surface Treatment: Chemically treated barrels to reduce contact resistance
- Filled with jointing compound and capped for protection
- Dimensions (H x L x W): 30mm x 200mm x 50mm
- Weight: 2.5 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Barrier design facilitates ingress of jointing compound in joint
- Unique 'Funnel Entry' design for easy insertion of stranded sector cable
- Crimp from centre mark outwards with standard Australian/NZ hexagonal dies
- Forging process eliminates imperfections in metal structure for long-term reliability
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with aluminium conductor connections and crimping techniques.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Used in electrical joints requiring reliable aluminium conductor connections
- Suitable for oil filled cables and other industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Improves electrical efficiency by reducing contact resistance
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Aluminium Link 800mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor joints.
