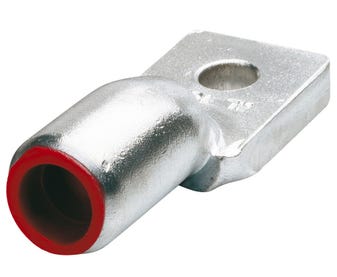

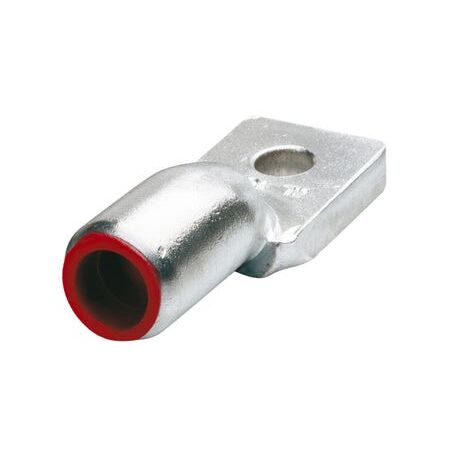

Aluminium Lug 120mm² | 12mm Stud | Funnel Entry | Chemically Treated by Cabac
Aluminium lug with 120mm² conductor size and 12mm stud—ideal for electrical power connectivity. Built for stranded sector and circular stranded conductors, with a funnel entry and chemically treated barrel for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Lug 120mm2 - Stud 12mm
Brand: Cabac
SKU: AL120-12
Alternatively Known As: Aluminium cable lug, Aluminium crimp lug, Electrical aluminium connector, Aluminium conductor lug, Aluminium terminal lug
Technical Specifications
- Nominal Conductor Size: 120 mm²
- Stud Size: 12 mm
- Palm Width: 30 mm
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): n/a mm x 120mm x n/a mm
- Weight: 0.1 kg
Key Features
- Forged from solid 99.6% pure electrical grade aluminium rod for improved metal structure
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped for enhanced electrical reliability
- Crimp with standard hexagonal dies from palm outwards to force jointing compound into conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Used in electrical installations requiring reliable aluminium lugs for conductor termination
Standards & Compliance
- AS/NZS 4325 Part 1 – Electrical connectors for power cables
Environmental Benefits
- Manufactured from 99.6% pure aluminium, a recyclable and sustainable material
- Improved electrical efficiency reduces energy loss and heat generation
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium Lug 120mm2 - Stud 12mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring durable aluminium conductor lugs.
