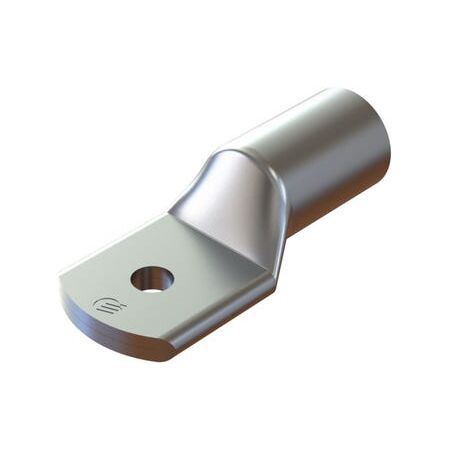

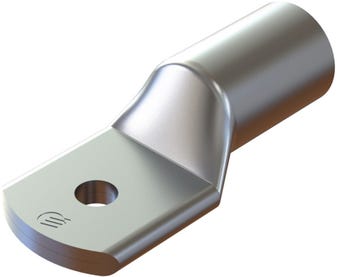

Aluminium Lug 400mm² M10 Stud Cabac
Cabac Aluminium Lug features 400mm² cable entry, M10 stud hole, and a crimp barrel. Ideal for large aluminium mains terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium Crimp Lug, Aluminium Cable Terminal, Aluminium Compression Lug, 400 mm² Aluminium Lug
Technical Specifications
- Nominal Conductor Size: 400 mm²
- Stud Hole Size: M10
- Cable Entry Internal Diameter: 26.5 mm
- Material: 99.6% pure electrical-grade aluminium
- Manufacturing Process: Forged from solid aluminium rod
- Barrel Treatment: Chemically treated and filled with jointing compound
- Crimping: Two hexagonal crimps from the palm end
- Recommended Crimp Die: ECW-3D4/500AL
- Hex Die Across Flats: 39 mm
- Tensile Strength: 110 MPa
- Operating Temperature: -20°C to +140°C
- Electrical Conductivity: Minimum 61.8% IACS
- Dimensions (H x L x W): 39mm x 160mm x 54mm
- Weight: 0.25 kg
Key Features
- Designed for terminating large aluminium power cables
- Forged construction reduces imperfections associated with cast aluminium lugs
- Funnel-entry barrel assists insertion of stranded sector and circular stranded conductors
- Pre-filled jointing compound helps inhibit aluminium oxidation and reduce contact resistance
- M10 stud hole suits standard bolted electrical equipment and busbar connections
- Palm can be oriented to suit installation requirements before crimping
- Suitable for crimping with CABAC standard aluminium compression tooling
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the correct aluminium-rated crimping tool and die. Scratch-brush the conductor before insertion and crimp from the palm end in accordance with the manufacturer's installation instructions and AS/NZS 4325.1.
Applications
- Large aluminium mains cable terminations
- Power distribution boards and switchboards
- Industrial electrical installations
- Utility and infrastructure power connections
- Aluminium cable connections to compatible aluminium terminals and busbars
Standards & Compliance
- AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Made from highly recyclable aluminium
- Durable forged construction supports extended service life and reduces replacement waste
- Jointing compound helps protect the connection against oxidation and premature failure
- Lightweight aluminium construction can reduce material and handling impacts compared with heavier metallic alternatives
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase, subject to correct installation, intended use and applicable Australian Consumer Law guarantees.
