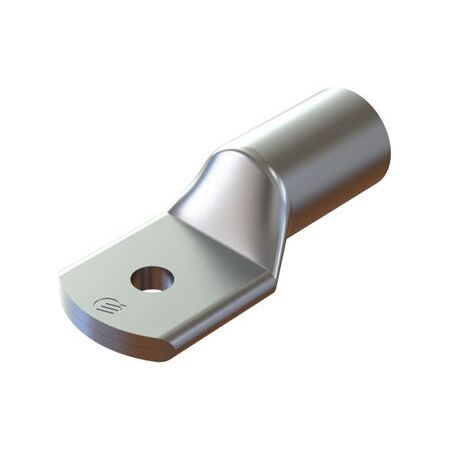

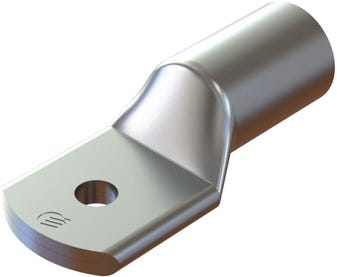

Aluminium Lug 400mm² M12 Stud Cabac

BRAND: CABAC
SKU: AL400-12
$81.50 List price: $108.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Aluminium Lug features 400mm² cable entry, M12 stud hole, and a crimp barrel. Ideal for large aluminium mains terminations.

Alternatively Known As: AL400-12, Aluminium Cable Lug, Aluminium Compression Lug, Aluminium Termination Lug

Technical Specifications
  • Conductor Size: 400mm²
  • Stud Hole: M12 nominal, 13mm hole diameter
  • Material: 99.6% pure electrical-grade aluminium
  • Construction: Forged aluminium body
  • Cable Entry: Funnel-entry barrel for stranded sector and circular stranded conductors
  • Inside Diameter: 26.5mm
  • Barrel Length: 70mm
  • Palm Width: 54mm
  • Palm Thickness: 15mm
  • Crimping: Two hexagonal crimps from the palm outwards
  • Recommended Crimp Die: ECW-3D4/500AL
  • Operating Temperature: -20°C to +140°C
  • Electrical Properties: Minimum 61.8% IACS conductivity; maximum 2.6 micro-ohm cm resistivity
  • Jointing Compound: Pre-filled barrel compound to reduce oxidation and contact resistance
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 15mm x 160mm x 54mm
  • Weight: 0.48 kg
Key Features
  • Suitable for 400mm² aluminium conductors
  • Forged from solid electrical-grade aluminium for improved structural consistency
  • Funnel entry simplifies insertion of stranded sector cables
  • Palm can be orientated to suit installation alignment
  • Chemically treated barrel helps reduce contact resistance
  • Pre-filled jointing compound helps disrupt aluminium oxidation
  • Compatible with standard hexagonal crimping equipment
  • Designed for large mains, switchboard and power-distribution terminations
Professional Installation Requirements
  • Installation must be carried out by a qualified electrician with the circuit isolated and proven de-energised. Scratch-brush the aluminium conductor, use the specified ECW-3D4/500AL crimp die, crimp from the palm towards the barrel, and follow the applicable installation and crimping requirements of AS/NZS 3000 and AS/NZS 4325.1.
Applications
  • Large aluminium mains cable terminations
  • Electrical switchboards and distribution boards
  • Power-distribution equipment
  • Industrial electrical installations
  • Busbar and terminal connections using M12 mounting studs
Standards & Compliance
  • AS/NZS 4325.1 for compression connectors and cable lugs
Environmental Benefits
  • Aluminium is highly recyclable and can be recovered at end of product life
  • Durable forged construction supports extended service life and reduces replacement waste
  • Low-resistance termination design can help minimise connection losses and associated energy wastage
  • Pre-filled jointing compound helps protect the connection against oxidation and premature failure
Warranty Information

Covered by CABAC's standard 12-month warranty from the date of purchase, subject to correct installation, intended use and Australian Consumer Law guarantees.

Available Now

Available through authorised CABAC distributors in Australia.
