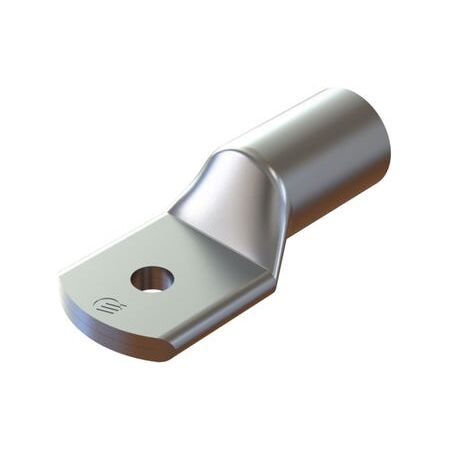

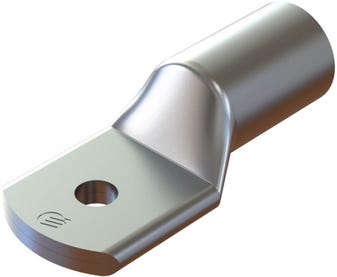

Aluminium Lug 500mm² M10 Stud Cabac
Cabac Aluminium Lug features 500mm² cable entry, M10 stud hole, and a crimp barrel. Ideal for large aluminium mains terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 500mm² Aluminium Crimp Lug, Aluminium Power Cable Lug, Aluminium Compression Lug, AL500 M10 Lug
Technical Specifications
- Nominal Conductor Size: 500 mm²
- Stud Size: M10
- Barrel Internal Diameter: 30 mm
- Palm Width: 54 mm
- Barrel Length: 70 mm
- A/F Hex Die Size: 39 mm
- Crimps Required: 2
- Crimp Die: ECW-3D4/500AL
- Material: 99.6% pure electrical-grade aluminium
- Manufacturing Process: Forged from solid aluminium rod
- Barrel Treatment: Chemically treated and supplied with jointing compound and cap
- Tensile Strength: 110 MPa
- Ductility: 28%
- Electrical Conductivity: Minimum 61.8% IACS
- Electrical Resistivity: Maximum 2.6 micro-ohm cm
- Operating Temperature: -20°C to +140°C
- Recommended M10 Hardware Torque: 36 Nm
- Packaging Unit: 1 each
- Dimensions (H x L x W): 15mm x 160mm x 54mm
- Weight: 0.45 kg
Key Features
- Designed for 500 mm² stranded sector and circular stranded aluminium conductors
- M10 stud hole for large mains and power distribution terminations
- Forged construction helps eliminate casting imperfections and reduce the risk of hot joints
- Funnel-entry barrel simplifies insertion of stranded sector conductors
- Chemically treated barrel helps reduce contact resistance
- Pre-filled jointing compound and capped barrel improve connection protection
- Lug palm can be oriented to suit installation requirements
- Suitable for standard hexagonal crimping dies
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with applicable wiring rules and manufacturer instructions. Scratch-brush aluminium conductors before insertion, crimp from the palm towards the barrel using the ECW-3D4/500AL die, and tighten M10 connection hardware to the recommended 36 Nm torque.
Applications
- Large aluminium mains cable terminations
- Electrical switchboards and distribution boards
- Power distribution networks
- Industrial electrical installations
- Commercial and infrastructure power connections
Standards & Compliance
- AS/NZS 4325.1 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium is highly recyclable, supporting recovery of material at end of product life
- Forged construction and jointing compound help support durable, low-maintenance connections and reduce replacement waste
- Low contact resistance can help minimise connection losses and associated energy waste
- Extended service life reduces the frequency of component replacement
Warranty Information
CABAC products are generally covered by a 12-month warranty from the date of purchase unless a different warranty is stated for the product. Warranty does not cover misuse, neglect or incorrect installation, and Australian Consumer Law guarantees apply.
Available Now
Available through authorised CABAC distributors in Australia.
