Aluminium Lug 500mm² M12 Stud Cabac

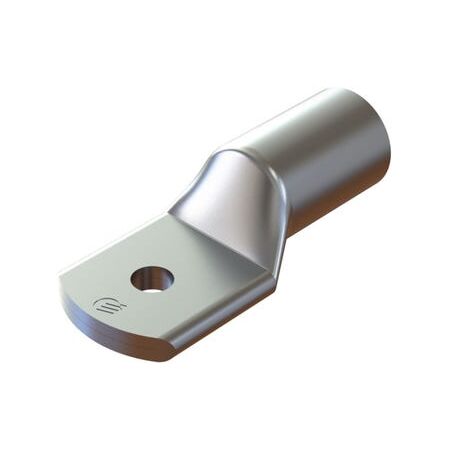

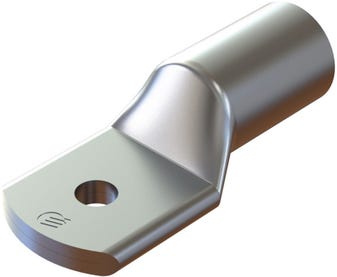

Cabac Aluminium Lug features 500mm² cable entry, M12 stud hole, and a crimp barrel. Ideal for large aluminium mains terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 500mm² Aluminium Crimp Lug, Aluminium Compression Lug, Aluminium Power Cable Lug
Technical Specifications
- Conductor Size: 500mm²
- Material: Forged electrical-grade aluminium alloy
- Stud Size: M12
- Clearance Hole Diameter: 13.0mm
- Conductor Entry Inside Diameter: 30mm
- Barrel Outside Diameter: 47mm
- Palm Width: 54mm
- Palm Thickness: 15mm
- A/F Hex Die Size: 39mm
- Operating Temperature: -55°C to +150°C
- Packaging: 1 piece
- Dimensions (H x L x W): 47mm x 160mm x 54mm
- Weight: 0.45 kg
Key Features
- Designed for terminating large aluminium power conductors
- Forged aluminium construction for consistent mechanical and electrical performance
- Pre-filled barrel jointing compound helps reduce oxidation and contact resistance
- Machined conductor entry supports cable insertion
- Crimp barrel suitable for standard hexagonal compression tooling
- M12 clearance hole for connection to studs, terminals or busbars
- Suitable for power distribution, switchboards and industrial electrical installations
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the manufacturer-specified crimping die and procedure. Aluminium conductors should be scratch-brushed before crimping, with the lug crimped from the palm towards the barrel in accordance with the installation instructions and applicable wiring requirements.
Applications
- Large aluminium mains cable terminations
- Switchboards and distribution equipment
- Industrial power distribution systems
- Utility and infrastructure electrical installations
- Connection of aluminium conductors to M12 studs, terminals and busbars
Standards & Compliance
- AS/NZS 4325.1 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium construction reduces component weight compared with equivalent copper lugs
- Aluminium is highly recyclable at end of service life
- Jointing compound and forged construction help extend termination service life and reduce replacement waste
- Designed for reliable power connections that can support efficient electrical system operation
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase against defects, subject to correct installation and use. Australian Consumer Law rights also apply.
Available Now
Available through authorised CABAC distributors in Australia.
