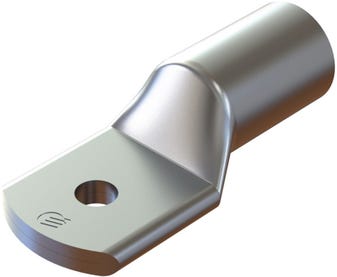

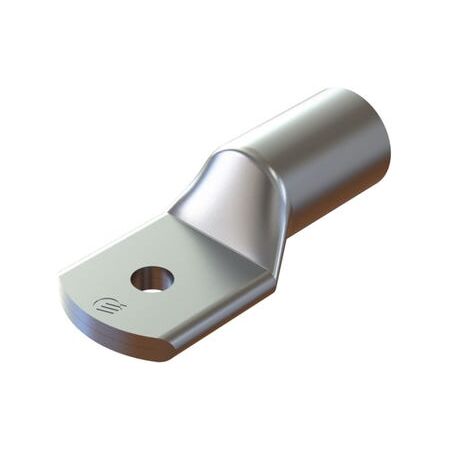

Aluminium Lug 500mm² M16 Stud Cabac
Cabac Aluminium Lug features 500mm² cable entry, M16 stud hole, and a crimp barrel. Ideal for large aluminium mains terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium compression lug, aluminium cable terminal, 500 mm² aluminium lug
Technical Specifications
- Nominal Conductor Size: 500 mm²
- Stud Size: M16
- Cable Entry Inside Diameter: 30 mm
- Material: 99.6% pure electrical-grade aluminium
- Manufacturing Process: Forged from solid aluminium rod
- Tensile Strength: 110 MPa
- Ductility: 28%
- Electrical Conductivity: Minimum 61.8% IACS
- Maximum Resistivity: 2.6 micro-ohm cm
- Operating Temperature: -20°C to 140°C
- Crimping: 2 hexagonal crimps, from the palm end outwards
- Recommended Crimp Die: ECW-3D4/500AL
- Recommended M16 Hardware Torque: 150 Nm
- Jointing Compound: Pre-filled and capped barrel
- Packaging Unit: 1 each
- Dimensions (H x L x W): 54mm x 160mm x 70mm
- Weight: 0.32 kg
Key Features
- Suitable for stranded sector and circular stranded aluminium conductors
- Forged construction reduces imperfections associated with cast aluminium lugs
- Funnel-entry barrel simplifies insertion of large stranded conductors
- Chemically treated barrel helps reduce contact resistance and aluminium oxidation
- Pre-filled jointing compound assists reliable electrical contact
- M16 stud hole suits large mains termination equipment and busbars
- Lug palm can be orientated as required before termination
- Compatible with standard Australian and New Zealand hexagonal crimping dies
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician using the specified CABAC tooling and procedures. Scratch-brush the conductor before insertion, crimp from the palm end outwards, and tighten M16 connection hardware to the recommended torque.
Applications
- Large aluminium mains cable terminations
- Low-voltage distribution boards and switchboards
- Electrical power distribution equipment
- Industrial control panels and busbar connections
- Utility, infrastructure and commercial electrical installations
Standards & Compliance
- AS/NZS 4325.1 compression-type electrical connectors
- RoHS substance-restriction compliance
Environmental Benefits
- Aluminium is highly recyclable and can be recovered at end of product life
- Pre-filled jointing compound helps reduce oxidation and supports a longer-lasting termination
- Forged construction and reliable crimp performance can reduce premature replacement and material waste
Warranty Information
Warranty claims are subject to CABAC's current warranty terms and Australian Consumer Law. No product-specific warranty period was identified for this aluminium lug.
Available Now
Available through authorised CABAC distributors in Australia.
