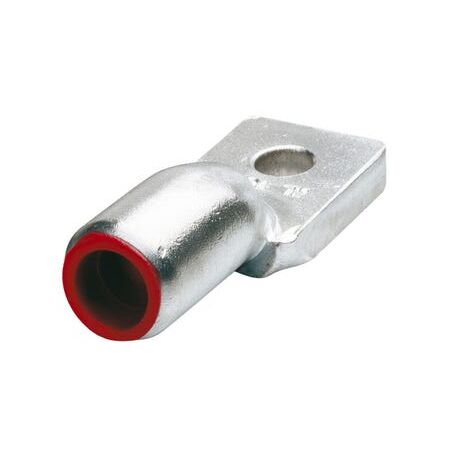

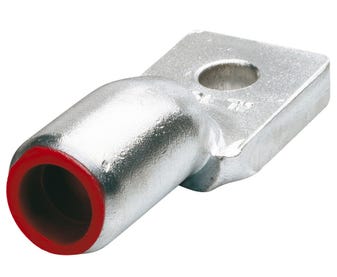

Aluminium Lug 70mm² | 12mm Stud | Funnel Entry | Flexible Installation by Cabac
Aluminium lug with 70mm² conductor size and 12mm stud—ideal for industrial and commercial electrical installations. Built for reliable power connectivity, with a unique funnel entry design and flexible orientation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Lug 70mm2 - Stud 12mm
Brand: Cabac
SKU: AL70-12
Alternatively Known As: Aluminium cable lug, Aluminium crimp lug, Electrical aluminium connector, Aluminium cable terminal, Aluminium wire lug
Technical Specifications
- Nominal Conductor Size: 70 mm²
- Stud Size: 12 mm
- Palm Width: 26 mm
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 12mm x 70mm x 26mm
- Weight: 0.1 kg
Key Features
- Forged from 99.6% pure electrical grade aluminium rod for improved metal structure
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction for flexible installation
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped to enhance electrical reliability
- Crimping recommended with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard hexagonal crimping dies, ensuring conductors are scratch brushed before crimping.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Industrial and commercial electrical installations requiring reliable aluminium lugs
- Electrical cable terminations and connections
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical connectors
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improved electrical efficiency reduces energy loss and heat generation
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Aluminium Lug 70mm2 - Stud 12mm is available for immediate purchase, ideal for electrical power connectivity applications requiring durable and reliable aluminium lugs.
