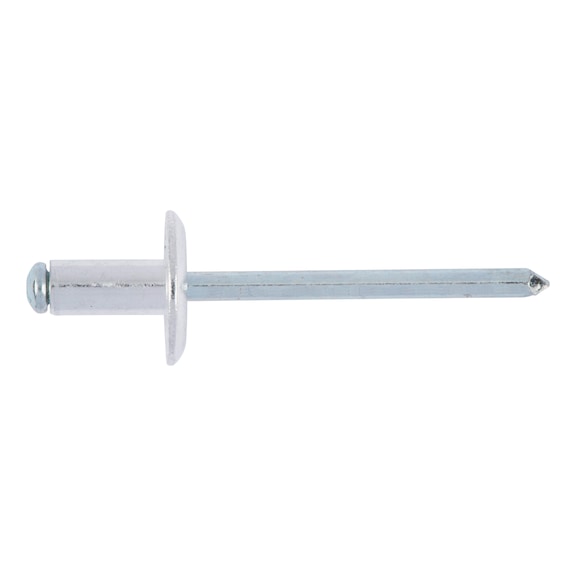

Aluminium Mandrel Rivet 3.2x10.1mm | Large Truss Head | High Shear & Tensile Strength | by Wurth
The Aluminium Mandrel Rivet 3.2x10.1mm is designed for robust fastening in construction and manufacturing. Featuring a lightweight aluminium sleeve and a durable zinc-plated steel mandrel, it offers high shear-fracture load of 756 N and tensile fracture load of 979 N. Ideal for joining metal sheets and plastics, this rivet ensures secure and permanent fastening in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Mandrel Rivet 3.2x10.1mm | Large Truss Head | High Shear & Tensile Strength | by Wurth
Brand: Wurth
SKU: 944329
Alternatively Known As: Blind rivet, Pop rivet, Aluminium mandrel rivet, Large truss head rivet
Technical Specifications
- Nominal diameter x length (d1 x l1): 3.2 x 10.1 mm
- Min./max. grip range: 4.7-6.3 mm
- Head diameter (dk): 9.6 mm
- Head height (k1): 1.6 mm
- Min./max. drill hole diameter: 3.28-3.38 mm
- Shear-fracture load: 756 N
- Tensile fracture load: 979 N
- Material of mandrel: Steel
- Material of sleeve: Aluminium
- Surface of the mandrel: Zinc plated
- Surface of the sleeve: Plain
- Head type: Large truss head
- Dimensions (H x L x W): 1.6mm x 10.1mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Sleeve made of aluminium for lightweight and corrosion resistance
- Mandrel made of zinc plated steel with blue passivation for enhanced durability
- Large truss head design for better load distribution
- High shear-fracture load of 756 N and tensile fracture load of 979 N
Professional Installation Requirements
- Installation requires appropriate rivet gun and trained personnel to ensure secure fastening.
Applications
- Used for fastening materials in construction, automotive, and manufacturing industries
- Suitable for joining metal sheets, plastics, and other materials requiring strong, permanent fastening
Standards & Compliance
- Complies with AS/NZS 4789 for mechanical fasteners and rivets
Environmental Benefits
- Aluminium sleeve is recyclable and lightweight, reducing material waste
- Zinc plating provides corrosion resistance, extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Aluminium Sleeve Zinc Plated Steel Mandrel Rivet 3.2x10.1mm is available for immediate purchase, ideal for industrial and construction fastening applications.
