Aluminium Non-Tension Sleeve for 7/4.50 AAC/AAAC | Pre-Filled with Jointing Compound | Secure Connection Design by Cabac

BRAND: CABAC
SKU: ANT58
$31.60 List price: $38.30
+ −
30 Days Return Delivery Options

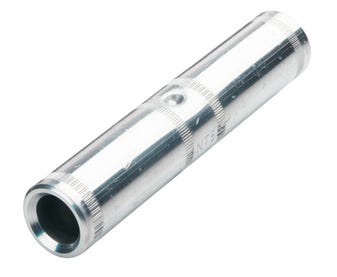

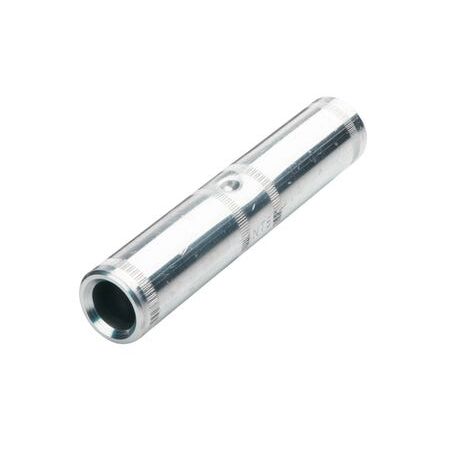

Cabac Aluminium Non-Tension Sleeve designed for 7/4.50 AAC or AAAC conductors, featuring a centre cable location dimple, jointing compound filling, and end caps for secure and corrosion-resistant overhead line connections.

Product Name/Title: Al.Non Tens.Slve for 7/4.50

Brand: Cabac

SKU: ANT58

Alternatively Known As: Aluminium Non-Tension Sleeve, AAC Connector Sleeve, AAAC Conductor Sleeve, Overhead Line Connector Sleeve

Technical Specifications
  • Compatible conductor size: 7/4.50 mm AAC or AAAC
  • Material: Aluminium
  • Filled with jointing compound
  • Includes end caps
  • Crimp method: Hex or indent dies
  • Dimensions (H x L x W): 20mm x 100mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Non-tension sleeve design for secure conductor connection
  • Centre cable location dimple for accurate positioning
  • Pre-filled with jointing compound to prevent corrosion
  • Includes end caps for protection
  • Crimpable using hex or indent dies for reliable mechanical and electrical connection
Professional Installation Requirements
  • Installation should be performed by a qualified electrical technician or lineman experienced with overhead line connectors to ensure safety and compliance.
Applications
  • Electrical overhead line connections
  • Use with AAC (All Aluminium Conductor) and AAAC (All Aluminium Alloy Conductor) cables
  • Suitable for power distribution and transmission lines
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Pre-filled jointing compound helps prevent corrosion, extending product life and reducing waste
  • Durable aluminium construction supports long-term reuse and reliability
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Aluminium Non-Tension Sleeve for 7/4.50 AAC or AAAC conductors is available now for immediate purchase. Ideal for overhead electrical line connections in power distribution and transmission.
