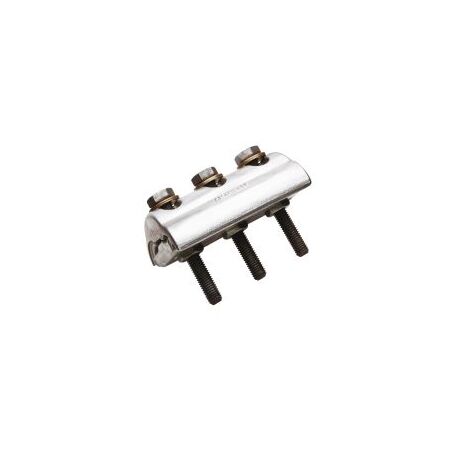

Aluminium Parallel Groove Clamp 35-300mm² 3 x M10 Cabac

BRAND: CABAC
SKU: ALPG35/300-3B
$53.30 List price: $71.00
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Aluminium Parallel Groove Clamp features 35mm² to 300mm² range, 3 x M10 galvanised bolts, and forged body. Ideal for tapping AAC, AAAC or ACSR overhead lines.

Alternatively Known As: Aluminium Parallel Groove Clamp, Aluminium PG Clamp, Overhead Line Tap Clamp, ALPG35/300-3B

Technical Specifications
  • Conductor Range: 35–300 mm²
  • Clamp Material: 99.6% pure aluminium
  • Construction: Forged aluminium body
  • Bolt Configuration: 3 x M10
  • Bolt Material: Galvanised steel
  • Spanner Size: 17 mm A/F
  • Recommended Tightening Torque: 44 Nm
  • Operating Temperature: -55°C to 140°C
  • Conformant Standard: AS 1154
  • Accepting Authorities: Ergon and Powercor
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 70mm x 105mm x 65mm
  • Weight: 1.1 kg
Key Features
  • Suitable for tapping or joining AAC, AAAC and ACSR overhead conductors
  • Forged body provides higher strength than an extruded construction
  • Slotted holes accommodate varying conductor sizes on each side
  • Transverse gripping grooves improve electrical conductivity and pull strength
  • Three galvanised M10 bolts allow high-torque tightening with a single spanner
  • Designed for non-tension overhead conductor connections
Professional Installation Requirements
  • Installation should be carried out by a licensed electrical contractor or suitably qualified overhead-line technician on isolated and correctly controlled electrical networks, in accordance with the applicable network authority requirements and manufacturer instructions.
Applications
  • Tapping AAC overhead conductors
  • Tapping AAAC overhead conductors
  • Tapping ACSR overhead conductors
  • Joining aluminium overhead conductors
  • Overhead electricity distribution and network maintenance
Standards & Compliance
  • AS 1154 for electrical conductor fittings and associated components
Environmental Benefits
  • Aluminium is highly recyclable at the end of the product's service life
  • The durable forged construction can support extended service life and reduce replacement waste
  • Suitable for overhead electrical distribution systems without requiring additional insulating material at the clamp body
Warranty Information

CABAC provides a 12-month warranty from the date of purchase against defects, subject to correct installation, use and maintenance. Australian Consumer Law guarantees also apply where relevant.

Available Now

Available through authorised CABAC distributors in Australia.
