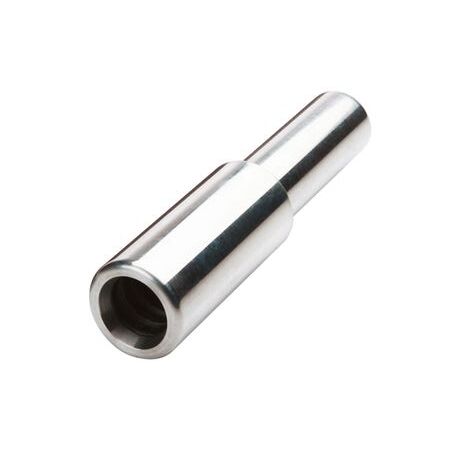

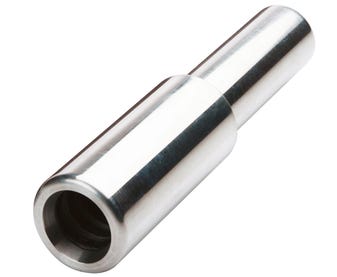

Aluminium Reducing Link 120mm² to 95mm² | Barrier Type | Crimp Compatible | Corrosion Resistant by Cabac
Cabac Aluminium Reduced Link 120mm2 To 95mm2 is a barrier type reducing link designed for stranded sector and circular stranded aluminium conductors, providing an impermeable barrier to oils or water and suitable for crimping with standard Australian tooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Reduced Link 120mm2 To 95mm2
Brand: Cabac
SKU: ALKR120/95
Alternatively Known As: Aluminium Reducing Link, Aluminium Crimp Link, Aluminium Cable Link, Aluminium Conductor Link
Technical Specifications
- Nominal Conductor Size: 120mm² to 95mm²
- Stranding Metric: 37/2.03 - 37/1.78
- Material: Aluminium 99.6% pure, fully annealed
- Tensile Strength: 110 MPa
- Ductile Strength: 28%
- Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Operating Temperature Range: -20 to +140 °C
- Number of Crimps: 2 on each end
- Hex Die Size: 17.3 mm
- Dimensions (H x L x W): 15.5mm x 140mm x 60mm
- Weight: 0.2 kg
Key Features
- Barrier type aluminium reducing link suitable for use in any situation requiring impermeable barrier to oils or water
- Designed to be crimped with CABAC and MSS Power tools or standard Australian/NZ hex dies
- Compatible with imperial, metric or custom link sizes
- Do not crimp close to the centre barrier to avoid shearing
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician using appropriate crimping tools and dies to ensure secure and compliant connections.
Applications
- Used for stranded sector and circular stranded aluminium conductors
- Applications for tails or fly leads or reducing joints
- Use where impermeable barrier to oils or water is required
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Made from 99.6% pure aluminium which is recyclable
- Durable and corrosion resistant, reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Aluminium Reduced Link 120mm2 To 95mm2 is available for immediate purchase, ideal for electrical and power connectivity applications requiring reliable aluminium conductor connections.
