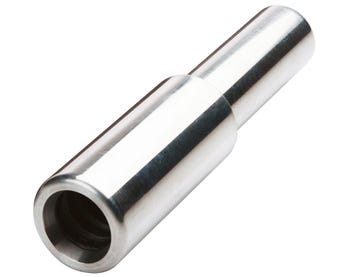

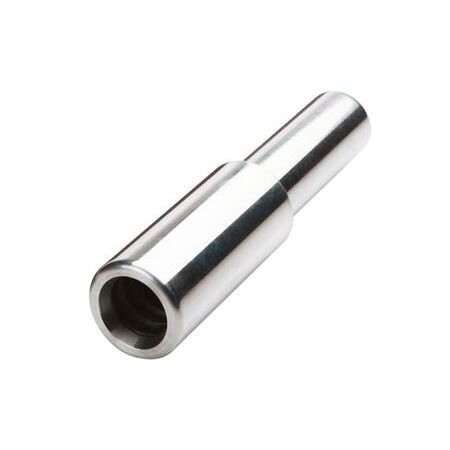

Aluminium Reducing Link 185mm² to 95mm² Cabac
Cabac Aluminium Reducing Link features 185mm² to 95mm² crimp barrels. Ideal for joining aluminium conductors of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium Reducer Link, Aluminium Crimp Reducing Link, Aluminium Cable Joint Link
Technical Specifications
- Conductor Sizes: 185mm² to 95mm²
- Material: 99.6% pure aluminium
- Conductor Stranding: 37/2.52mm to 37/1.78mm
- Operating Temperature: -20°C to 140°C
- Electrical Resistivity: 2.6 micro-ohm cm maximum
- Electrical Conductivity: 61.8% IACS minimum
- Large Barrel Crimp Die: HT-150/185AL
- Small Barrel Crimp Die: HT-95/120AL
- Large Barrel Crimps: 2
- Small Barrel Crimps: 2
- Large Barrel Hex: 22mm A/F
- Small Barrel Hex: 17.3mm A/F
- Unit Quantity: 1 each
- Dimensions (H x L x W): 25.4mm x 140mm x 25.4mm
- Weight: 0.1 kg
Key Features
- Joins 185mm² and 95mm² aluminium conductors of different sizes
- Suitable for stranded sector and circular stranded aluminium conductors
- Barrier-type construction provides an impermeable barrier to oils and water
- Designed for tails, fly leads and reducing joints
- Compatible with standard Australian and New Zealand hex crimp dies
- Designed for crimping with CABAC and MSS power tools or dies
- Fully annealed aluminium construction supports reliable crimping
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the specified CABAC aluminium crimp dies and manufacturer instructions. Isolate and verify the electrical circuit before crimping.
Applications
- Electrical power cable reducing joints
- Aluminium conductor tails and fly leads
- Distribution and industrial power installations
- Joining 185mm² aluminium cable to 95mm² aluminium cable
Standards & Compliance
- AS/NZS 4325.1:1995, Compression and mechanical connectors for power cables with copper or aluminium conductors — test methods and requirements
Environmental Benefits
- Made from 99.6% pure aluminium, which is recyclable at end of service life
- Durable crimped construction can support extended connector service life and reduce replacement waste
Warranty Information
CABAC products are covered by a 12-month warranty from the date of purchase unless a different product-specific warranty is stated. Australian Consumer Law guarantees also apply.
Available Now
Available through authorised CABAC distributors in Australia.
