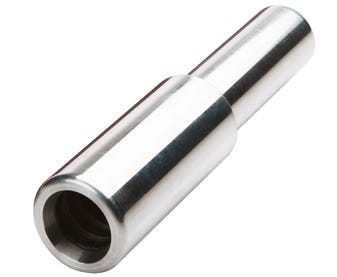

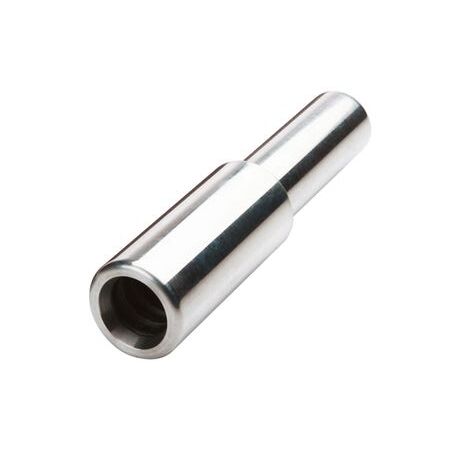

Aluminium Reducing Link 240mm² to 185mm² Cabac
Cabac Aluminium Reducing Link features 240mm² to 185mm² crimp barrels. Ideal for joining aluminium conductors of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium Reducing Link, Aluminium Crimp Link, Aluminium Cable Reducing Sleeve, 240mm² to 185mm² Aluminium Link
Technical Specifications
- Conductor Sizes: 240mm² to 185mm²
- Material: 99.6% pure aluminium
- Conductor Stranding: 61/2.25mm to 37/2.52mm
- Barrier Type: Impermeable barrier against oils and water
- Tensile Strength: 110MPa
- Ductile Strength: 28%
- Electrical Conductivity: Minimum 61.8% IACS
- Electrical Resistivity: Maximum 2.6 micro-ohm cm
- Operating Temperature: -20°C to 140°C
- Large-End Crimp Die: HT-240/300AL, 28.4mm A/F, 2 crimps
- Small-End Crimp Die: HT-150/185AL, 22mm A/F, 2 crimps
- Crimping Method: Standard Australian hex crimp tooling
- Packaging Unit: 1 each
- Dimensions (H x L x W): 35mm x 150mm x 35mm
- Weight: 0.25 kg
Key Features
- Joins different sizes of stranded aluminium conductors
- Suitable for circular stranded and sector stranded aluminium conductors
- Barrier design helps prevent oil and water ingress
- Compatible with CABAC and MSS Power tools and dies
- Designed for standard Australian hex crimp tooling
- Fully annealed aluminium construction
- Four specified crimps provide secure conductor retention
Professional Installation Requirements
- Installation must be performed by a suitably qualified electrician on de-energised conductors using the specified CABAC crimp dies and procedure. Prepare aluminium conductors to control oxide formation, insert them to the correct depth and do not crimp close to the centre barrier, as incorrect crimp positioning may shear the link.
Applications
- Joining 240mm² and 185mm² aluminium power conductors
- Underground power distribution networks
- Electrical power transmission and distribution systems
- Reducing joints between different-sized aluminium cables
- Aluminium cable tails and fly-lead connections
- Commercial, industrial and utility electrical installations
Standards & Compliance
- AS/NZS 4325.1 compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Aluminium construction is recyclable at end of service life
- Barrier sealing helps protect the joint from moisture and contamination, supporting longer service life
- Lightweight aluminium construction can reduce material and transport impacts compared with heavier metal alternatives
- Durable crimped connections can reduce premature replacement and associated installation waste
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase against defects, subject to correct installation, use and the manufacturer's warranty conditions. Australian Consumer Law guarantees also apply.
Available Now
Available through authorised CABAC distributors in Australia.
