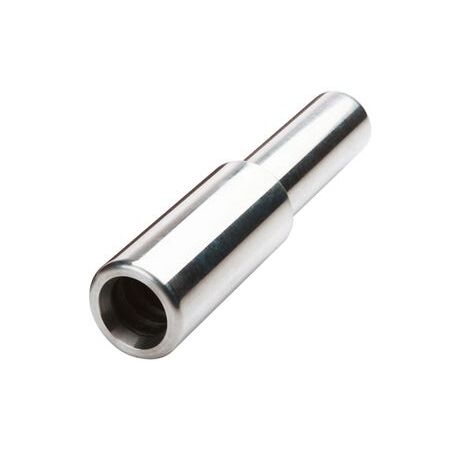

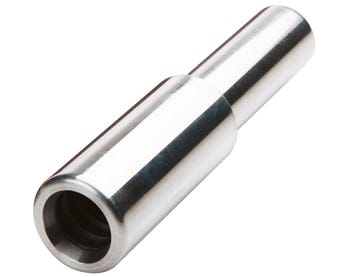

Aluminium Reducing Link 25mm² to 10mm² | Barrier Type | Crimp Compatible | Durable Design by Cabac
Cabac Aluminium Reduced Link 25mm2 To 10mm2 is a barrier type reducing link designed for stranded sector and circular stranded aluminium conductors, providing an impermeable barrier to oils or water and suitable for crimping with standard Australian tooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Reduced Link 25mm2 To 10mm2
Brand: Cabac
SKU: ALKR25/10
Alternatively Known As: Aluminium Reducing Link, Aluminium Crimp Link, Aluminium Cable Link, Aluminium Conductor Link
Technical Specifications
- Nominal Conductor Size: 25mm² to 10mm²
- Stranding Metric: 19/1.35 - 7/1.35
- Length (K): 32mm, Width (M): 4.5mm
- Large End Hex Size: 9.0mm, Small End Hex Size: 9.0mm
- Number of Crimps: 1 on each end
- Conductive Material: Aluminium 99.6% pure
- Tensile Strength: 110 MPa
- Ductile Strength: 28%
- Final Metal State: Fully Annealed
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Operating Temperature Range: -20 to +140 °C
- Dimensions (H x L x W): 7.5mm x 80mm x 32mm
- Weight: 0.1 kg
Key Features
- Barrier type aluminium reducing link suitable for use in environments requiring impermeable barrier to oils or water
- Designed to be crimped with CABAC and MSS Power tools or standard Australian/NZ hex dies
- Compatible with stranded sector and circular stranded aluminium conductors
- Can be custom produced in imperial, metric or any combination sizes
Professional Installation Requirements
- Should be crimped using standard Australian/NZ hex dies and CABAC or MSS power tools by a qualified electrical professional to ensure proper connection and safety.
Applications
- Used for stranded sector and circular stranded aluminium conductors
- Applications for tails or fly leads or reducing joints
- Use where impermeable barrier to oils or water is required
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- Made from 99.6% pure aluminium which is recyclable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty information not specified; please refer to Cabac's standard product warranty terms.
Available Now
The Cabac Aluminium Reduced Link 25mm2 To 10mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor connections.
