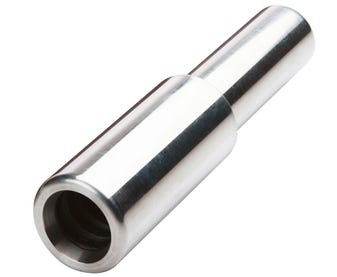

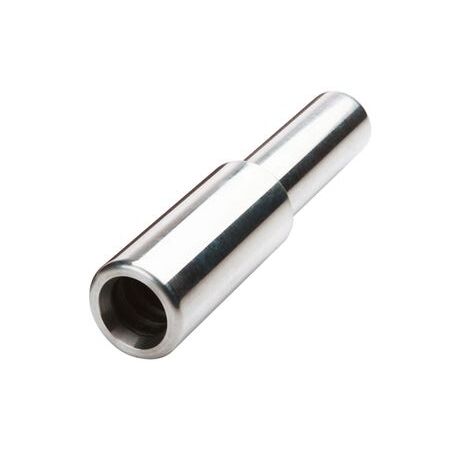

Aluminium Reducing Link 500mm² to 300mm² | Barrier Type | Crimp Compatible | Durable Design by Cabac

BRAND: CABAC
SKU: ALKR500/300
$64.50 List price: $78.10
+ −
30 Days Return Delivery Options
Cabac Aluminium Reduced Link 500mm2 to 300mm2 is a high-quality barrier type reducing link designed for stranded aluminium conductors, providing reliable electrical connections with impermeable protection against oils and water.

Product Name/Title: Aluminium Reduced Link 500mm2 To 300mm2

Brand: Cabac

SKU: ALKR500/300

Alternatively Known As: Aluminium Reducing Link, Aluminium Reducing Connector, Aluminium Crimp Link, Aluminium Cable Link, Aluminium Conductor Link

Technical Specifications
  • Nominal Conductor Size: 500mm² to 300mm²
  • Stranding Metric: 61/3.20 - 61/2.52
  • Material: Aluminium 99.6% pure, fully annealed
  • Tensile Strength: 110 MPa
  • Ductile Strength: 28%
  • Electrical Resistivity: 2.6 micro-ohm cm (max)
  • Conductivity: 61.8% IACS (min)
  • Operating Temperature Range: -20 to +140 °C
  • Number of Crimps: 2 on each end
  • Crimp Die Aluminium Large End: ECW-H3D4/500AL
  • Crimp Die Aluminium Small End: HT-240/300AL
  • A/F Hex Large End: 39.0 mm
  • A/F Hex Small End: 28.4 mm
  • Dimensions (H x L x W): 30mm x 160mm x 70mm
  • Weight: 1.5 kg
Key Features
  • Barrier type aluminium reducing link suitable for use where impermeable barrier to oils or water is required
  • Designed for crimping with standard Australian/NZ hex dies
  • Compatible with CABAC and MSS power tools or dies
  • Can be custom produced in imperial, metric, or mixed sizes
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools and dies to ensure secure and compliant connections.
Applications
  • Electrical connections for stranded sector and circular stranded aluminium conductors
  • Use in tails, fly leads, or reducing joints
  • Situations requiring an impermeable barrier to oils or water
Standards & Compliance
  • AS/NZS 4325 Part 1
Environmental Benefits
  • Made from 99.6% pure aluminium which is recyclable
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Warranty against manufacturing defects as per Cabac standard terms.

Available Now

The Cabac Aluminium Reduced Link 500mm2 to 300mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor connections.
