Aluminium Reducing Link 70mm2 to 25mm2 | Barrier Type | Crimp Compatible | Durable Design by Cabac

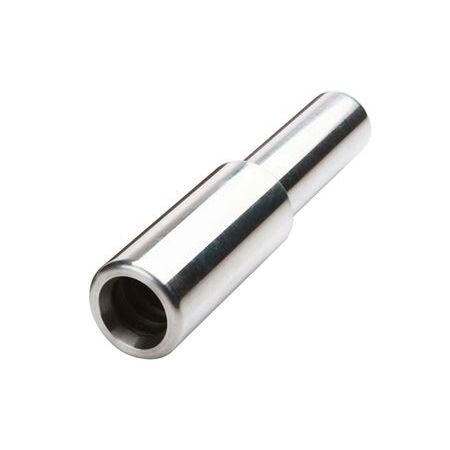

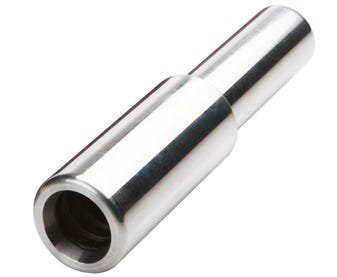

Cabac Aluminium Reduced Link 70mm2 To 25mm2 is a barrier type reducing link designed for stranded sector and circular stranded aluminium conductors, providing a reliable and impermeable connection for electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Reduced Link 70mm2 To 25mm2
Brand: Cabac
SKU: ALKR70/25
Alternatively Known As: Aluminium Reducing Link, Aluminium Crimp Link, Aluminium Cable Link, Aluminium Conductor Link
Technical Specifications
- Nominal Conductor Size: 70mm2 to 25mm2
- Stranding Metric: 19/2.14 - 19/1.35
- Material: Aluminium 99.6% pure
- Tensile Strength: 110 MPa
- Ductile Strength: 28%
- Final Metal State: Fully Annealed
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Operating Temperature Range: -20 to +140 °C
- Crimping: Designed for standard Australian hex dies, 1 crimp per end
- Large End Hex Size: 13.2 mm
- Small End Hex Size: 9.0 mm
- Dimensions (H x L x W): 11.5mm x 85mm x 32mm
- Weight: 0.1 kg
Key Features
- Barrier type aluminium reducing link suitable for impermeable barrier to oils or water
- Designed to be crimped with CABAC and MSS Power tools or standard Australian/NZ hex dies
- Can be produced in imperial, metric or any combination as required
- Conforms to Australian and many international standards
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure connections using appropriate tooling.
Applications
- Used for stranded sector and circular stranded aluminium conductors
- Applications for tails or fly leads or reducing joints
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- Made from 99.6% pure aluminium which is recyclable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Aluminium Reduced Link 70mm2 To 25mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor connections.
