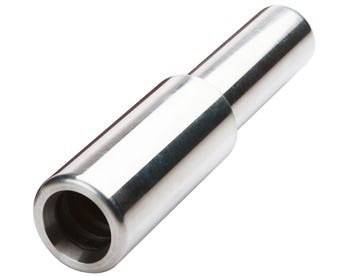

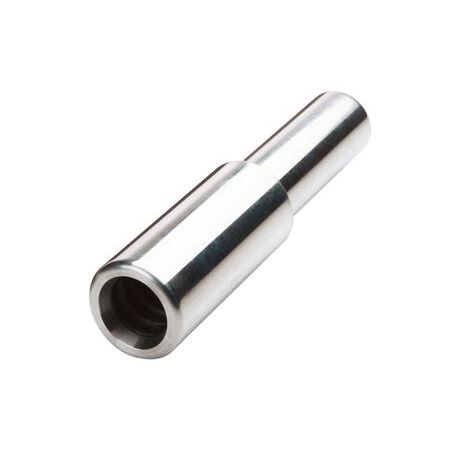

Aluminium Reducing Link 95mm² to 70mm² Cabac
Cabac Aluminium Reducing Link features 95mm² to 70mm² crimp barrels. Ideal for joining aluminium conductors of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium Cable Reducing Link, Aluminium Crimp Reducing Link, ALKR95/70
Technical Specifications
- Product Code: ALKR95/70
- Conductor Sizes: 95mm² to 70mm²
- Material: 99.6% pure aluminium
- Conductor Compatibility: Stranded sector and circular stranded aluminium conductors
- Electrical Conductivity: Minimum 61.8% IACS
- Maximum Resistivity: 2.6 micro-ohm cm
- Tensile Strength: 110 MPa
- Final Metal State: Fully annealed
- Operating Temperature: -20°C to 140°C
- Large-End Crimp Die: CABAC HT-95/120AL
- Large-End Crimp: 17.3mm A/F hex, 2 crimps
- Small-End Crimp Die: CABAC HT-50/70AL
- Small-End Crimp: 13.2mm A/F hex, 1 crimp
- Overall Length: 115mm
- Barrier Type: Impermeable barrier against oils and water
- Dimensions (H x L x W): 21.5mm x 115mm x 21.5mm
- Weight: 0.1 kg
Key Features
- Joins 95mm² and 70mm² aluminium conductors of different sizes
- Suitable for stranded sector and circular stranded aluminium conductors
- Barrier-type construction helps prevent ingress of oils and water
- Manufactured from 99.6% pure aluminium
- Fully annealed for ductility and reliable crimping
- Designed for use with standard Australian hex-crimp tooling
- Requires two crimps on the 95mm² end and one crimp on the 70mm² end
Professional Installation Requirements
- Installation and crimping should be carried out by a licensed electrician using the specified CABAC aluminium crimp dies and manufacturer-approved procedures. De-energise and isolate the electrical installation before work.
Applications
- Low-voltage power distribution connections
- Joining 95mm² aluminium cable to 70mm² aluminium cable
- Industrial and commercial electrical installations
- Underground and above-ground power network connections
- Stranded aluminium conductor transitions
Standards & Compliance
- AS/NZS 4325 Part 1
Environmental Benefits
- Aluminium is highly recyclable and can be recovered at the end of the product's service life
- Fully annealed construction supports reliable long-term service and may reduce replacement waste
- Enables the use of lightweight aluminium conductors in electrical distribution systems
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase, subject to correct installation, intended use and Australian Consumer Law guarantees.
