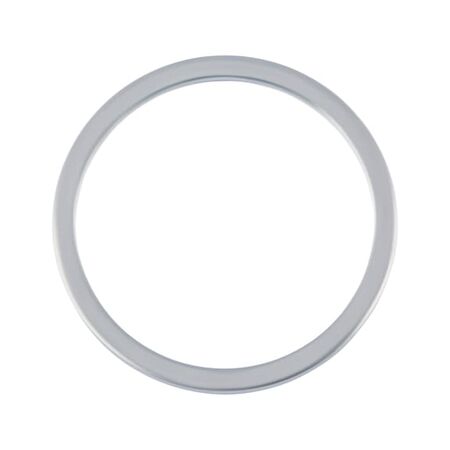

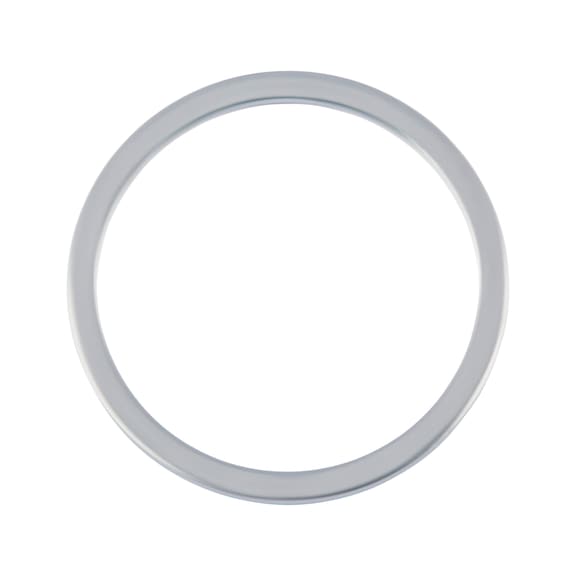

Aluminium Sealing Washer | Durable Material | High Temperature Resistance | DIN 7603 Compliant | by Wurth
The Aluminium Sealing Washer is designed for automotive and industrial applications, featuring a durable aluminium construction and a plain surface finish. With a high temperature resistance of up to 200°C, this sealing washer complies with DIN 7603 standards, making it ideal for Mercedes and VW/Audi vehicles as an original spare part replacement. Ensure proper sealing and fitment with professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Sealing Washer | Durable Material | High Temperature Resistance | DIN 7603 Compliant | by Wurth
Brand: Wurth
SKU: 4631014
Alternatively Known As: Aluminium sealing washer, sealing ring, aluminium gasket, DIN 7603 washer
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Form: A
- Nominal size: 10 x 14 mm
- Internal diameter (d1): 10.2 mm
- Outer diameter (d2): 13.9 mm
- Thickness (h1): 1.0 mm
- Max. temperature resistance: 200°C
- DIN: 7603
- Suitable for male thread (imperial): R 1/8 inch
- Corresponds to original spare part number: Mercedes 007 603 010101, VW/Audi N.013 806.3
- Dimensions (H x L x W): 1mm x 14mm x 14mm
- Weight: 0.1 kg
Key Features
- Made from durable aluminium material
- Plain surface finish
- Form A sealing washer
- High temperature resistance up to 200°C
- Complies with DIN 7603 standard
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and fitment.
Applications
- Automotive: Suitable for Mercedes and VW/Audi vehicles as original spare part replacement
- Industrial: Sealing applications requiring high temperature resistance
- General: Suitable for use with male thread R 1/8 inch fittings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Recyclable aluminium material reduces environmental impact
- Durable design extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Aluminium Sealing Washer 10 x 14 mm is available for immediate purchase, ideal for automotive and industrial sealing applications.
