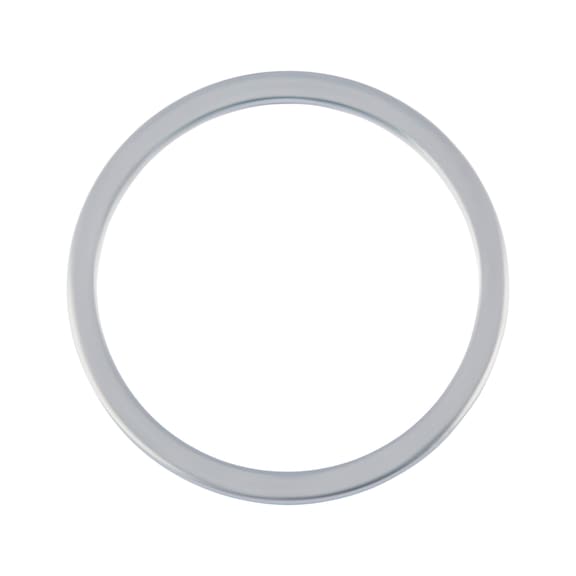

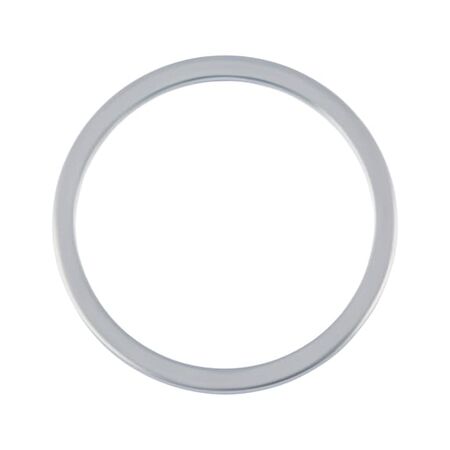

Aluminium Sealing Washer | Durable Material | Plain Surface Finish | Max Temp Resistance 200°C | by Wurth
The Aluminium Sealing Washer is designed for reliable sealing in automotive and industrial applications. Made from durable aluminium with a plain surface finish, it withstands temperatures up to 200°C and complies with DIN 7603 standards. Ideal for use with male thread R 1/8 inch, this sealing ring is a perfect replacement part for Mercedes vehicles, ensuring optimal performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Sealing Washer | Durable Material | Plain Surface Finish | Max Temp Resistance 200°C | by Wurth
Brand: Wurth
SKU: 4631016
Alternatively Known As: Aluminium sealing washer, sealing ring, gasket ring, aluminium crush washer
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Form: A
- Nominal size: 10 x 16 mm
- Internal diameter (d1): 10.2 mm
- Outer diameter (d2): 15.9 mm
- Thickness (h1): 1.0 mm
- Max temperature resistance: 200 °C
- DIN: 7603
- Suitable for male thread (imperial): R 1/8 inch
- Corresponds to original spare part number: Mercedes 007 603 010105
- Dimensions (H x L x W): 1mm x 16mm x 16mm
- Weight: 0.1 kg
Key Features
- Made from durable aluminium material
- Plain surface finish
- Form A sealing ring
- Max temperature resistance up to 200 °C
- Complies with DIN 7603 standard
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and safety.
Applications
- Sealing applications in automotive and industrial machinery
- Suitable for use with male thread R 1/8 inch
- Replacement part for Mercedes vehicles
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Recyclable aluminium material reduces environmental impact
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Aluminium Sealing Ring 10 x 16 mm is available now for immediate purchase. Ideal for automotive and industrial sealing applications.
