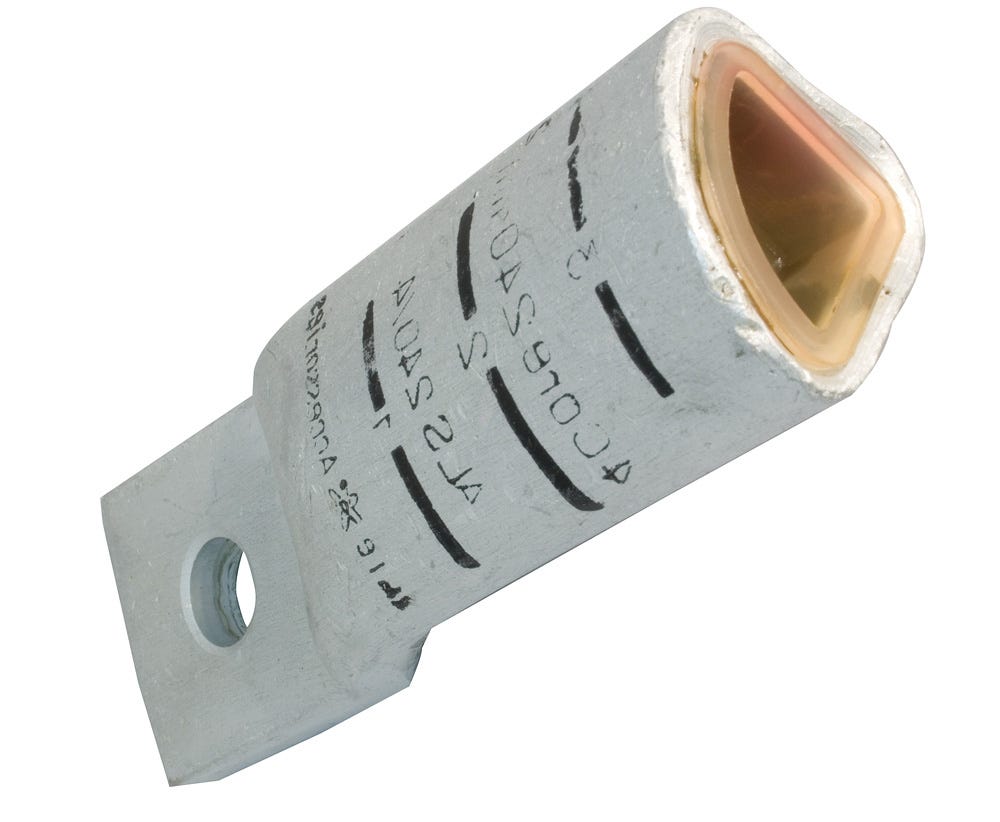

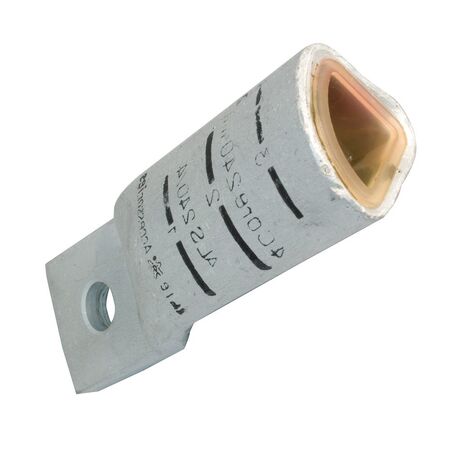

Aluminium Sector Lug 3 Core 240mm² | 99.6% Pure Aluminium | Chemically Treated Surface | @Each of 1 | by Cabac
The Aluminium Sector Lug 3 Core 240mm² is designed for reliable electrical power connectivity, made from 99.6% pure electrical grade aluminium. Ideal for industrial and commercial installations, it features a chemically treated surface to reduce contact resistance and inhibit corrosion, ensuring long-lasting performance. This lug is compatible with standard Australian tooling and requires three indent crimps for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium
- Stud hole size: Standard 12mm, larger sizes available on request
- Compatible with BS3988-1970 dimensioned solid sector aluminium cables
- Requires three indent crimps for secure connection
- Barrel coated with jointing compound and sealed with cap
- Dimensions (H x L x W): 40mm x 200mm x 120mm
- Weight: 0.5 kg
Key Features
- Designed to fit 3 core solid sector aluminium cables dimensioned according to BS3988-1970
- Made from 99.6% pure electrical grade aluminium
- Surface chemically treated to reduce contact resistance and inhibit corrosion
- Barrels coated with jointing compound and sealed with a cap
- Compatible with standard Australian tooling using common nest and indent dies
- Requires three indent crimps with a specific crimping sequence
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and following the recommended crimping sequence.
Applications
- Electrical power connectivity for solid sector aluminium cables
- Suitable for industrial and commercial electrical installations
- Used in power distribution and electrical infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Chemically treated surface extends product life reducing waste
- Enhances electrical efficiency by reducing contact resistance
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Aluminium Sector Lug 3 Core 240mm² is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial settings.
