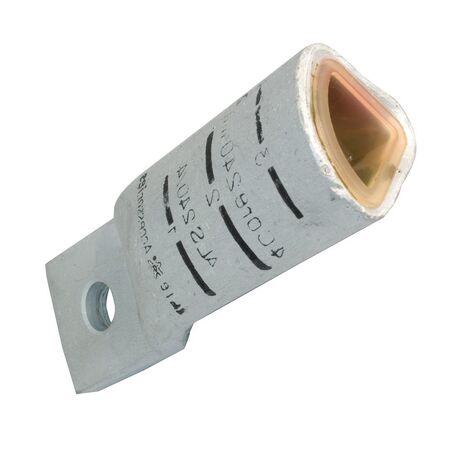

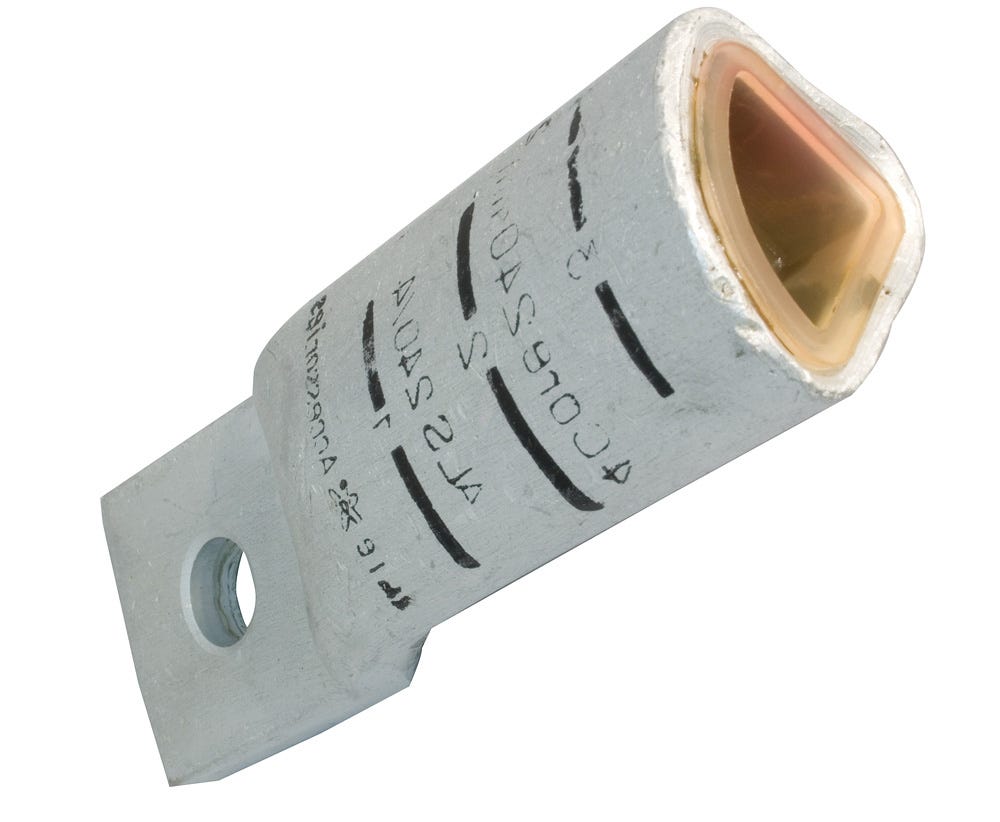

Aluminium Sector Lug 4 Core 120mm² | 99.6% Pure Aluminium | Corrosion Resistant | @Each of 1 | by Cabac
The Aluminium Sector Lug 4 Core 120mm² is designed for secure electrical connections in industrial and commercial applications. Made from 99.6% pure electrical grade aluminium, it features a chemically treated surface to reduce contact resistance and inhibit corrosion. Ideal for solid sector aluminium cables, this lug ensures reliable power distribution and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Sector Lug 4 Core 120mm² | 99.6% Pure Aluminium | Corrosion Resistant | @Each of 1 | by Cabac
Brand: Cabac
SKU: ALS120/4-12
Alternatively Known As: Aluminium Sector Lug 4 Core, 4 Core Aluminium Cable Lug, 120mm² Aluminium Lug
Technical Specifications
- Material: 99.6% pure electrical grade aluminium
- Stud hole size: Standard 12mm, larger sizes available on request
- Compatible with BS3988-1970 dimensioned solid sector aluminium cables
- Requires three indent crimps for secure connection
- Barrel coated with jointing compound and sealed with cap
- Dimensions (H x L x W): 40mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- Designed to fit 4 core solid sector aluminium cables dimensioned according to BS3988-1970
- Made from 99.6% pure electrical grade aluminium
- Surface chemically treated to reduce contact resistance and inhibit corrosion
- Barrels coated with jointing compound and sealed with a cap
- Compatible with standard Australian tooling using common nest and indent dies
- Requires three indent crimps with a specific crimping sequence
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical power connectivity for solid sector aluminium cables
- Suitable for industrial and commercial electrical installations
- Used in power distribution and electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Chemical treatment reduces corrosion, extending product life and reducing waste
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Aluminium Sector Lug 4 Core 120mm² is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial settings.
