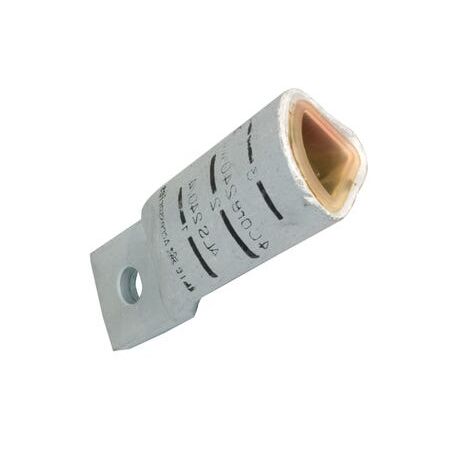

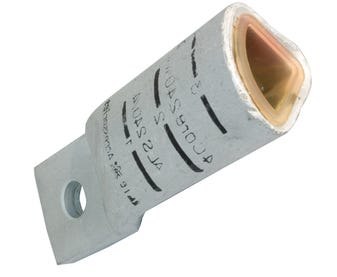

Aluminium Sector Lug 4 Core 240mm² | 12mm Stud Hole | Corrosion Resistant & High Conductivity by Cabac
Cabac Aluminium Sector Lug for 4 core 240mm² solid sector aluminium cables, featuring high purity aluminium construction, corrosion resistance, and compatibility with Australian tooling standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Sector 4 Core 240mm2
Brand: Cabac
SKU: ALS240/4-12
Alternatively Known As: Aluminium sector lug 4 core, 240mm² aluminium lug, aluminium cable lug 4 core, aluminium crimp lug 240mm²
Technical Specifications
- Nominal Conductor Size: 240mm²
- Stud Hole Size: 12mm (larger holes available on request)
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: Minimum 61.8% IACS
- Operating Temperature Range: -20 to +140 °C
- Dimensions (H x L x W): 40mm x 120mm x 100mm
- Weight: 0.2 kg
Key Features
- Designed for solid sector 4 core aluminium cables dimensioned to BS3988-1970
- Made from 99.6% pure electrical grade aluminium
- Chemically treated surface to reduce contact resistance and inhibit corrosion
- Barrels coated with jointing compound and sealed with a cap
- Compatible with standard Australian tooling using common nest and indent dies
- Requires three indent crimps with a specific crimping sequence
Professional Installation Requirements
- Installation requires professional crimping using CABAC or MSS Power tools with indent and nest dies. Follow the recommended crimping sequence starting at the line marked 1. Consult Cabac technical department for installation advice.
Applications
- Electrical connections for solid sector 4 core aluminium cables
- Suitable for power distribution and industrial electrical installations
Standards & Compliance
- AS/NZS 4325 Part 1 – Electrical & Electronics
Environmental Benefits
- Made from recyclable aluminium material
- Chemically treated surface extends product life reducing waste
- Enhances electrical efficiency by reducing contact resistance
Warranty Information
Warranty details available upon request from Cabac technical support.
Available Now
The Cabac Aluminium Sector Lug 4 Core 240mm² is available for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium cable terminations.
