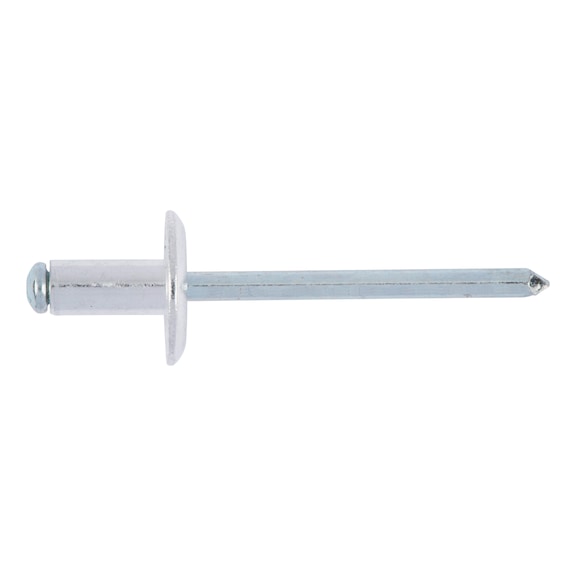

Aluminium Sleeve Zinc Plated Steel Mandrel Rivet | 5 x 12 mm | Truss Head Design | RoHS Compliant | by Wurth
The Aluminium Sleeve Zinc Plated Steel Mandrel Rivet is designed for strong and reliable fastening in various applications. With a nominal diameter of 5 x 12 mm and a big flat round truss head design, it ensures secure connections in metal, plastic, and composite materials. Ideal for construction, automotive, and manufacturing industries, this rivet is lightweight, corrosion-resistant, and RoHS-compliant, making it an environmentally friendly choice.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Sleeve Zinc Plated Steel Mandrel Rivet | 5 x 12 mm | Truss Head Design | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 9441412
Alternatively Known As: Blind rivet, Pop rivet, Aluminium mandrel rivet, Truss head rivet
Technical Specifications
- Nominal diameter x length (d1 x l1): 5 x 12 mm
- Min./max. grip range: 6.0-8.0 mm
- Head diameter (dk): 14.0 mm
- Head height (k1): 1.8 mm
- Min./max. drill hole diameter: 5.1-5.2 mm
- Shear-fracture load: 2150 N
- Tensile fracture load: 3100 N
- Material of mandrel: Steel
- Material of sleeve: Aluminium
- Surface of the mandrel: Zinc plated
- Surface of the sleeve: Plain
- Design: Big flat round head
- Head type: Truss head
- Standards: WN 944
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12mm x 12mm x 5mm
- Weight: 0.1 kg
Key Features
- Sleeve made of aluminium for lightweight and corrosion resistance
- Mandrel made of zinc plated steel with blue passivation for durability
- Big flat round truss head design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation requires appropriate rivet gun and trained personnel to ensure secure fastening.
Applications
- General fastening applications requiring strong, reliable rivets
- Suitable for metal, plastic, and composite materials
- Used in construction, automotive, and manufacturing industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Aluminium sleeve is recyclable and lightweight, reducing material usage
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Aluminium Sleeve Zinc Plated Steel Mandrel Rivet 5x12mm is available for immediate purchase, ideal for industrial and construction fastening applications.
