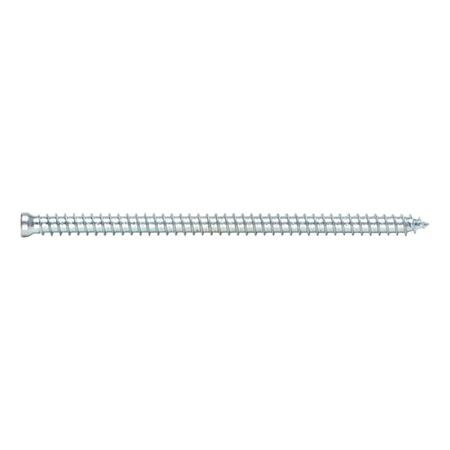

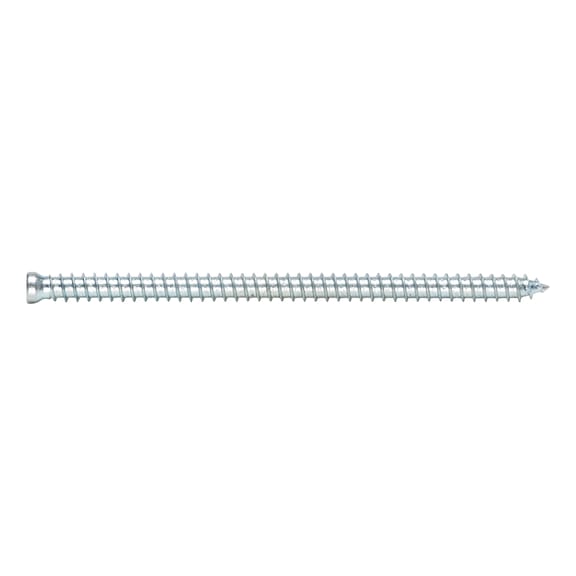

Amo® III 7.5 Type 2 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Amo® III 7.5 Type 2 Window Frame Screw is designed for secure window installation in concrete and solid block masonry. With a zinc plated steel construction and RW30 drive, it ensures durability and high load capacity. Ideal for narrow window rebate widths, this screw allows for quick installation without the need for additional anchoring materials, making it perfect for professionals seeking efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Amo® III 7.5 Type 2 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 23483082
Alternatively Known As: Window Frame Screw, Socket Head Screw, Zinc Plated Window Screw, RW30 Drive Screw, Concrete Window Screw
Technical Specifications
- Length: 82 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Socket head
- Head diameter: 8.0 mm
- Internal drive: RW30
- Thread type: Dowel screw thread
- Shape of tip: Tip
- Dimensions (H x L x W): 82mm x 82mm x 8mm
- Weight: 0.05 kg
Key Features
- Especially small socket head for screwing into narrow window rebate widths
- Short installation times with no setting tool or anchor required
- RW recess for longer bit service life and improved power transmission
- Mechanical interlock for high load capacity
- Virtually no expansion forces during installation
- Window installation possible without side supporting blocks and spacer blocks depending on conditions
- Removable anchorage with mechanical interlock and no expansion pressure
- Load-bearing capacity retained even under thermal stress
- Tested fire resistance period of 120 minutes
- Fire protection test report no. 3174/0649-2 dated 12 January 2000 in concrete
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with window fastening in masonry to ensure compliance with structural and fire safety standards.
Applications
- Window installation in concrete and solid block masonry
- Fastening windows in narrow window rebate widths
- Suitable for flood-proof window fastening according to ift directive
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plated steel reduces corrosion and extends product life, minimizing replacement waste
- Mechanical interlock design reduces need for additional anchoring materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Amo® III 7.5 Type 2 Window Frame Screw is available for immediate purchase, ideal for secure window installation in concrete and solid block masonry.
