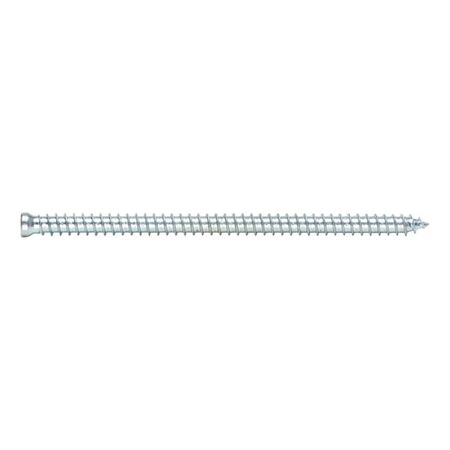

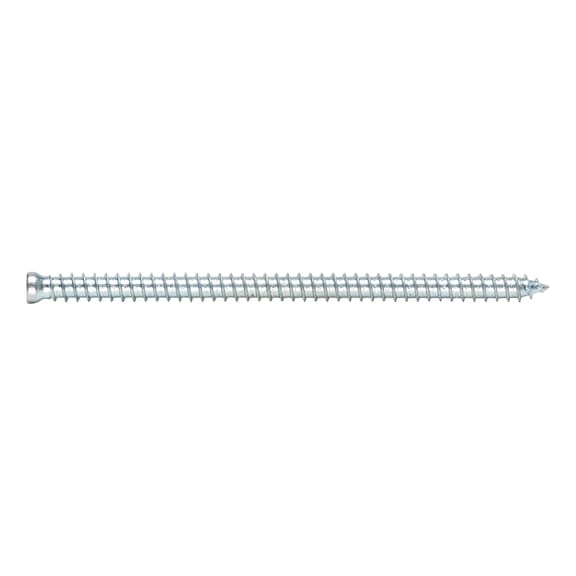

Amo® III 7.5 Type 2 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Amo® III 7.5 Type 2 Window Frame Screw is designed for efficient window installation in concrete and masonry. With a zinc plated steel construction and RW30 drive, it ensures quick installation without the need for anchors. Ideal for professionals, this screw offers high load capacity and fire resistance, making it perfect for narrow window rebate widths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Amo® III 7.5 Type 2 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 234830102
Alternatively Known As: Window Frame Screw, Socket Head Screw, Zinc Plated Window Screw, RW30 Drive Screw, Masonry Window Screw
Technical Specifications
- Length: 102 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Socket head
- Head diameter: 8.0 mm
- Internal drive: RW30
- Thread type: Dowel screw thread
- Shape of tip: Tip
- Dimensions (H x L x W): 8mm x 102mm x 8mm
- Weight: 0.05 kg
Key Features
- Especially small socket head for screwing into narrow window rebate widths
- Short installation times with no setting tool or anchor required
- RW recess for longer bit service life and improved power transmission
- Mechanical interlock for high load capacity
- Virtually no expansion forces during installation
- Window installation possible without side supporting blocks and spacer blocks depending on conditions
- Removable anchorage with mechanical interlock and no expansion pressure
- Load-bearing capacity retained under thermal stress
- Tested fire resistance period of 120 minutes
- Fire protection test report no. 3174/0649-2 dated 12 January 2000 in concrete
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with window frame fastening and local building codes to ensure compliance and safety.
Applications
- Window installation in concrete and solid block masonry
- Fastening narrow window rebate widths
- Suitable for flood-proof window fastening according to ift directive
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement waste
- Mechanical interlock design reduces need for additional anchoring materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Amo® III 7.5 Type 2 Window Frame Screw is available for immediate purchase, ideal for professional window installation in concrete and masonry applications.
