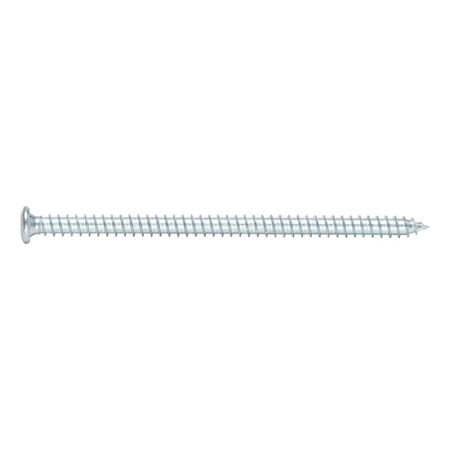

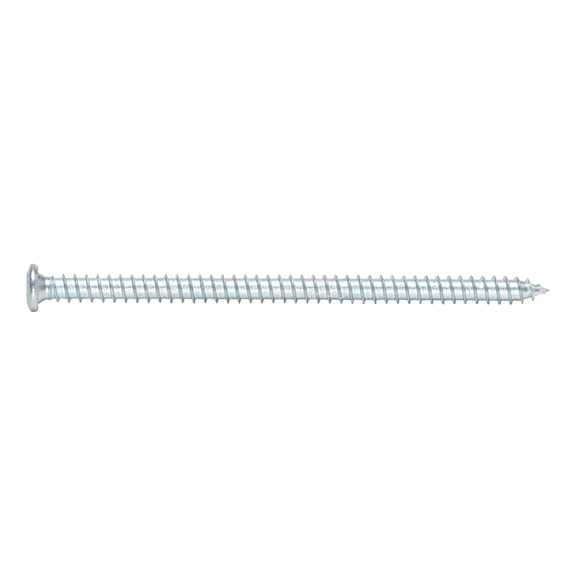

Amo® III 7.5 Type 3 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Amo® III 7.5 Type 3 Window Frame Screw is designed for secure window frame attachment in concrete and solid block masonry. With a zinc plated finish and RW30 drive, it offers immediate load-bearing capacity and no pre-drilling for softwood. Ideal for professionals, this screw ensures high load capacity and compliance with structural design standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Amo® III 7.5 Type 3 Window Frame Screw | Zinc Plated Steel | RW30 Drive | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 234930102
Alternatively Known As: Window frame screw, Zinc plated window screw, RW30 drive screw, Half round head screw, Masonry window screw

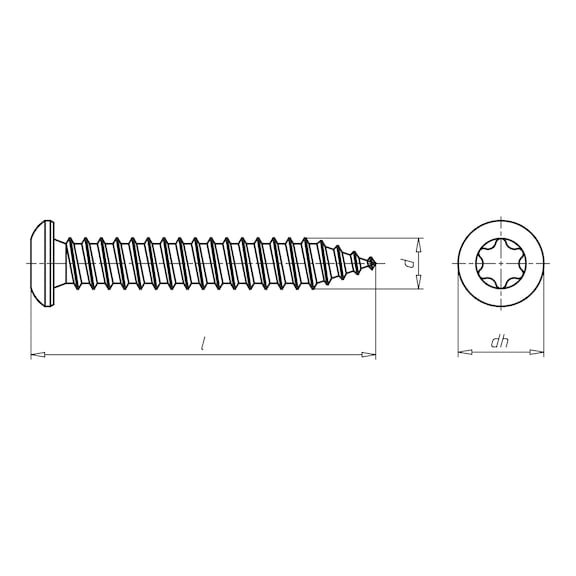

Technical Specifications
- Length: 102 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated, blue passivated
- Head type: Button head
- Head diameter: 12.5 mm
- Internal drive: RW30
- Thread type: Metric thread
- Shape of tip: Tip
- Suitable for sand-lime brick, solid brick, pumice, lightweight concrete, softwood
- No pre-drilling required for softwood
- Load capacities vary by material type
- Dimensions (H x L x W): 12.5mm x 102mm x 12.5mm
- Weight: 1.2 kg
Key Features
- Large flat button head lies neatly against the frame and can be covered with trim caps
- Removable anchorage with mechanical interlock and no expansion pressure
- Load-bearing capacity retained under thermal stress
- Tested fire resistance period of 120 minutes
- No anchor required, saving installation time
- Short installation times with no setting tools required
- RW30 recess for longer bit service life and improved power transmission
- Immediate load-bearing capacity after installation
- Mechanical interlock for high load capacity
- Virtually no expansion forces during installation
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchorage and load-bearing capacity.
Applications
- Ideal for attaching windows in concrete and solid block masonry
- Suitable for sand-lime brick, solid brick, pumice, lightweight concrete, and softwood
- Used in flood-proof window installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
- Mechanical interlock design reduces material waste by enabling removability and reuse
Warranty Information
Wurth provides standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth Amo® III 7.5 Type 3 Window Frame Screw is available for immediate purchase, ideal for construction and building applications requiring secure window frame attachment.
