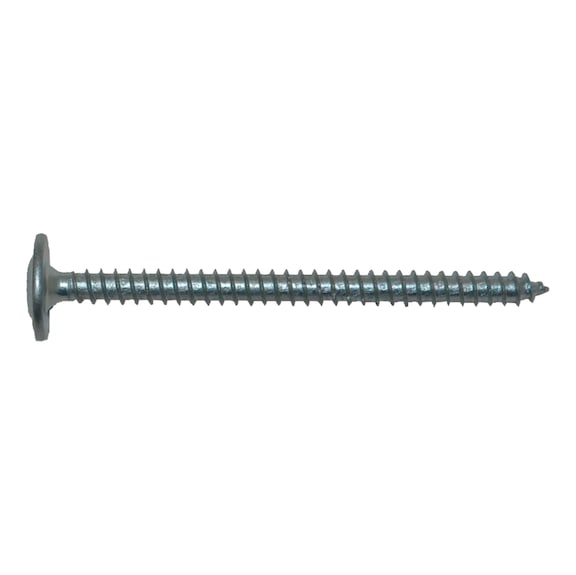

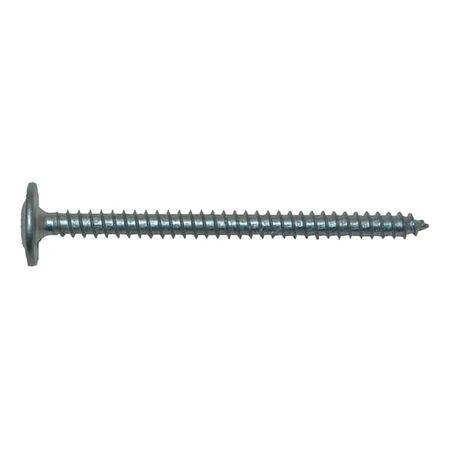

AMO IV Screw Anchor RW40 | Zinc Plated Steel | Large Washer Head | @Pack of 50 | by Wurth
The AMO IV Screw Anchor RW40 is designed for securing timber or steel elements to concrete or masonry, featuring a large washer head for improved uplift capacity and zinc-plated steel for corrosion resistance. Ideal for construction and building applications, this anchor provides immediate load-bearing capacity with no waiting after insertion, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AMO IV Screw Anchor RW40 | Zinc Plated Steel | Large Washer Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 234941102
Alternatively Known As: Timber screw anchor, Concrete screw anchor, RW40 drive screw, Zinc plated fixing screw
Technical Specifications
- Length: 102 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Round washer head
- Head diameter: 22 mm
- Internal drive: RW40
- Nominal drill hole diameter: 6.0 mm
- Dimensions (H x L x W): 102mm x 102mm x 22mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Large washer head for improved uplift capacity
- Positive-locking, removable anchoring with no expansion pressure
- Load-bearing function retained under thermal load
- RW40 drive for longer bit service life and improved power transmission
- Immediate load-bearing capacity with no waiting after insertion
- Virtually no expansion forces on insertion
Professional Installation Requirements
- Professional installation recommended using rotary drill without impact mechanism for perforated and hollow blocks.
Applications
- Securing timber or steel elements to concrete or masonry
- Nominal fixing of base plates to concrete as per AS1684.2-2010
Standards & Compliance
- Complies with AS/NZS 1684 - Structural design actions and fixing requirements
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Removable anchoring reduces waste by allowing reuse or repositioning
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring secure fixing to concrete or masonry.
