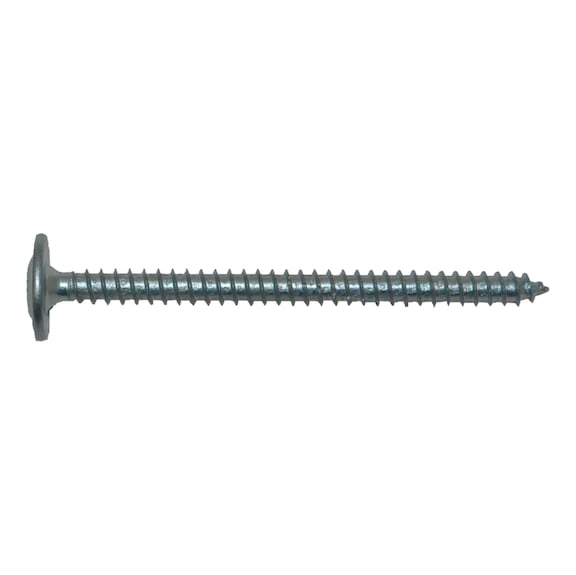

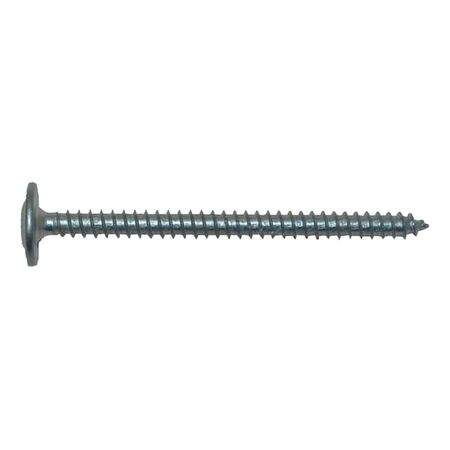

AMO IV Screw Dowel RW40 A2K | Zinc Plated Steel | Large Washer Head | Corrosion Resistant | @Pack of 50 | by Wurth
The AMO IV Screw Dowel RW40 A2K is designed for securing timber or steel elements to concrete or masonry, featuring a large washer head for improved uplift capacity and zinc-plated steel for corrosion resistance. Ideal for construction professionals, this screw dowel ensures immediate load-bearing capacity without expansion pressure, making it perfect for reliable installations in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AMO IV Screw Dowel RW40 A2K | Zinc Plated Steel | Large Washer Head | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 234941062
Alternatively Known As: Timber screw anchor, Concrete screw dowel, RW40 drive screw anchor, Zinc plated screw anchor
Technical Specifications
- Length: 62 mm
- Thread diameter: 7.5 mm
- Material: Steel
- Surface: Zinc plated
- Head type: Round washer head
- Head diameter: 22 mm
- Internal drive: RW40
- Nominal drill hole diameter: 6.0 mm
- Dimensions (H x L x W): 62mm x 62mm x 22mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Large washer head for improved uplift capacity
- Positive-locking, removable anchoring with no expansion pressure
- Load-bearing function retained under thermal load
- RW40 drive for longer bit service life and improved power transmission
- Immediate load-bearing capacity with no waiting after insertion
- Virtually no expansion forces on insertion
Professional Installation Requirements
- Installation should be performed by a qualified professional using appropriate rotary drill without impact mechanism for best results.
Applications
- Securing timber or steel elements to concrete or masonry
- Nominal fixing of base plates to concrete as per AS1684.2-2010
- Suitable for use in perforated and hollow blocks with rotary drill
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
- Meets fixing requirements as per AS1684.2-2010 Section 9.5 and 9.6
Environmental Benefits
- Durable zinc plating extends product life reducing replacement frequency
- Removable anchoring reduces waste by allowing reuse of components
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth AMO IV Screw Dowel RW40 A2K 75x62mm 50 pcs is available for immediate purchase, ideal for construction and building applications requiring secure fixing to concrete or masonry.
