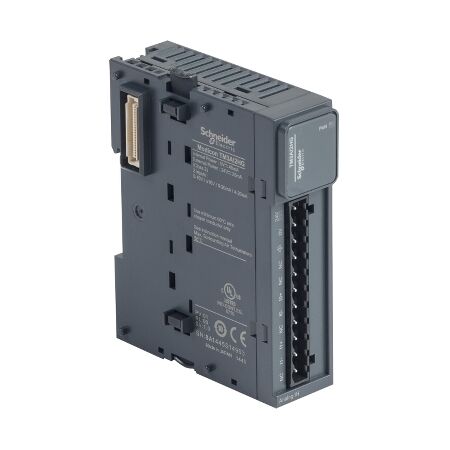

Modicon TM3, Analog input module, 2 inputs high resolution (spring) 24 VDC

Analog Input Module 2 Inputs | 16-Bit High Resolution | 24 VDC by Clipsal

BRAND: Clipsal

SKU: TM3AI2HG

$554.90 List price: $832.30

+ −

30 Days Return Delivery Options

Analog input module with 16-bit high resolution and 24 VDC supply—ideal for industrial automation systems. Built for precision, with support for current and voltage inputs.

Description
Attachments

Product Name/Title: Modicon TM3, Analog input module, 2 inputs high resolution (spring) 24 VDC

Brand: Clipsal

SKU: TM3AI2HG

Alternatively Known As: TM3AI2HG, Analog Input Module, High Resolution Input Module

Technical Specifications

Rated Supply Voltage: 24 V DC
Input Types: Current (4-20 mA, 0-20 mA), Voltage (0-10 V, -10 to 10 V)
Input Resolution: 16 bits
Conversion Time: 1 ms + 1 ms per channel
Operating Temperature: -10 to 55 °C
IP Rating: IP20
Electrical Connection: Removable spring terminal block
Dimensions (H x L x W): 90mm x 70mm x 23.6mm
Weight: 0.1 kg

Key Features

High resolution with 16-bit analog input
Compatible with Modicon M221, M241, M251, M262
Supports multiple input types: current and voltage
LED indicator for power status

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Process control
Data acquisition

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Complies with CE and RoHS regulations.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Analog Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3AI2HG (TM3AI2HG, 395 Kb) [Download]
