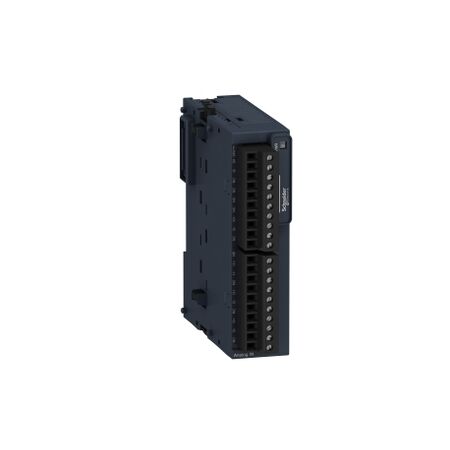

Modicon TM3, Analog input module, 4 / temperature inputs (screw) 24 VDC

Analog Input Module 4 Temperature Inputs | 24 VDC | IP20 by Clipsal

BRAND: Clipsal

SKU: TM3TI4

$740.70 List price: $1,111.00

+ −

30 Days Return Delivery Options

Analog input module with 4 temperature inputs and 24 VDC supply—ideal for industrial automation and temperature monitoring. Built for precision, with IP20 protection and compatibility with Modicon controllers.

Description
Attachments

Product Name/Title: Modicon TM3, Analog input module, 4 / temperature inputs (screw) 24 VDC

Brand: Clipsal

SKU: TM3TI4

Alternatively Known As: TM3 Analog Input Module, Modicon TM3 Temperature Module

Technical Specifications

Rated supply voltage: 24 V DC
Input types: current (4-20 mA, 0-20 mA), voltage (0-10 V, -10 to 10 V), thermocouples
Analog input resolution: 16 bits
Ambient temperature for operation: -10 to 55 °C
IP degree of protection: IP20
Electrical connection: 10 x 1.5 mm² removable screw terminal block
Dimensions (H x L x W): 90mm x 70mm x 23.6mm
Weight: 0.11 kg

Key Features

4 analog temperature inputs
Compatible with Modicon M221, M241, M251, M262
Supports various thermocouple types and voltage/current inputs
LED indicator for power status

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Temperature monitoring and control
Process control applications

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Complies with CE and RoHS regulations.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Analog Input Module is available now for immediate purchase. Ideal for industrial automation and temperature monitoring applications.

TM3TI4 (TM3TI4, 405 Kb) [Download]
