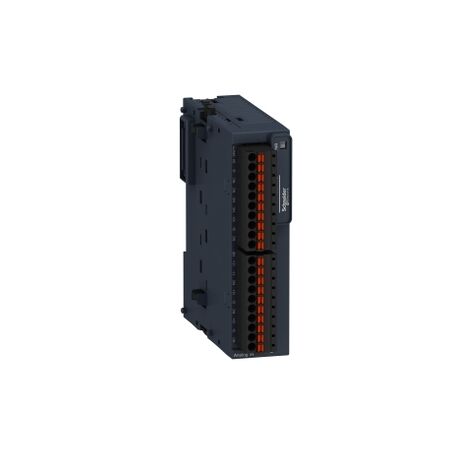

Analog Input Module 4 Temperature Inputs | 24 VDC | Spring Terminals by Clipsal
Analog input module with 4 temperature inputs and 24 VDC supply—ideal for industrial automation and process control. Built for Modicon systems, with versatile thermocouple compatibility and spring terminals for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modicon TM3, Analog input module, 4 / temperature inputs (spring) 24 VDC
Brand: Clipsal
SKU: TM3TI4G
Alternatively Known As: TM3 Temperature Input Module, Modicon TM3 Analog Module
Technical Specifications
- Rated Supply Voltage: 24 V DC
- Input Types: Current (4-20 mA, 0-20 mA), Voltage (0-10 V, -10 to 10 V), Thermocouples (J, K, R, S, T, N, E, B)
- Analog Input Resolution: 16 bits
- Conversion Time: 100 ms + 100 ms per channel
- Operating Temperature: -10 to 55 °C
- IP Rating: IP20
- Electrical Connection: 10 x 1.5 mm² removable screw terminal block
- Dimensions (H x L x W): 90mm x 70mm x 23.6mm
- Weight: 0.1 kg
Key Features
- 4 analog temperature inputs with various thermocouple compatibility.
- Supports current and voltage input types.
- Designed for use with Modicon M221, M241, M251, and M262.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, process control
- General: Any application requiring temperature monitoring and control
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon TM3 Analog Input Module is available now for immediate purchase. Ideal for industrial automation and temperature monitoring applications.
