Analog Input Module 8 Temperature Inputs | 24 VDC | IP20 Rated by Clipsal
Analog input module with 8 temperature inputs and 24 VDC supply—ideal for industrial automation systems. Built for precise temperature monitoring, compatible with Modicon M221, M241, M251, and M262.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

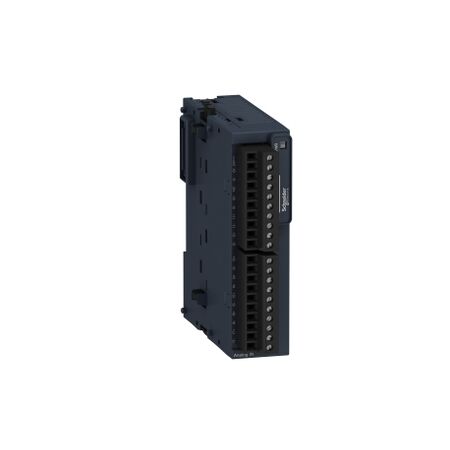

Product Name/Title: Modicon TM3, Analog input module, 8 temperature inputs (screw) 24 VDC
Brand: Clipsal
SKU: TM3TI8T
Alternatively Known As: Modicon TM3 Temperature Input Module, Analog Input Module, Temperature Monitoring Module
Technical Specifications
- Rated supply voltage: 24 V DC
- Input impedance: >= 1 MOhm
- Analogue input resolution: 16 bits
- Conversion time: 100 ms + 100 ms per channel + 1 controller cycle time
- Ambient air temperature for operation: -10...55 °C
- Relative humidity: 10...95 %, without condensation
- Electrical connection: 10 x 1.5 mm² removable screw terminal block
- Dimensions (H x L x W): 90mm x 70mm x 23.6mm
- Weight: 0.11 kg
Key Features
- 8 thermocouple inputs for a wide range of temperature measurements.
- Compatible with Modicon M221, M241, M251, and M262.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, temperature monitoring
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon TM3 Analog Input Module with 8 Temperature Inputs is available now for immediate purchase. Ideal for industrial automation applications.
