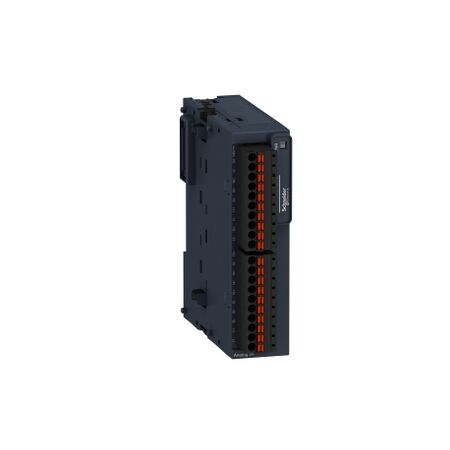

Analog Input Module 8 Temperature Inputs | 24 VDC | IP20 Rated by Clipsal
Analog input module with 8 temperature inputs and 24 VDC supply—ideal for industrial automation and temperature monitoring. Built for precision, with IP20 protection and compatibility with Modicon controllers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modicon TM3, Analog input module, 8 temperature inputs (spring) 24 VDC
Brand: Clipsal
SKU: TM3TI8TG
Alternatively Known As: TM3 Temperature Input Module, Modicon TM3 Thermocouple Module
Technical Specifications
- Rated supply voltage: 24 V DC
- Input impedance: >= 1 MOhm
- Analogue input resolution: 16 bits
- Conversion time: 100 ms + 100 ms per channel
- Temperature drift: +/- 0.01 %FS/°C
- Shock resistance: 15 gn for 11 ms
- Vibration resistance: 3.5 mm at 5-8.4 Hz
- Dimensions (H x L x W): 90mm x 70mm x 23.6mm
- Weight: 0.1 kg
Key Features
- 8 temperature inputs for various thermocouple types.
- Compatible with Modicon M221, M241, M251, and M262.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, temperature monitoring, process control
Standards & Compliance
- Complies with IEC 61131-2 for programmable controllers.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon TM3 Analog Input Module with 8 Temperature Inputs is available now for immediate purchase. Ideal for industrial automation and temperature monitoring applications.
