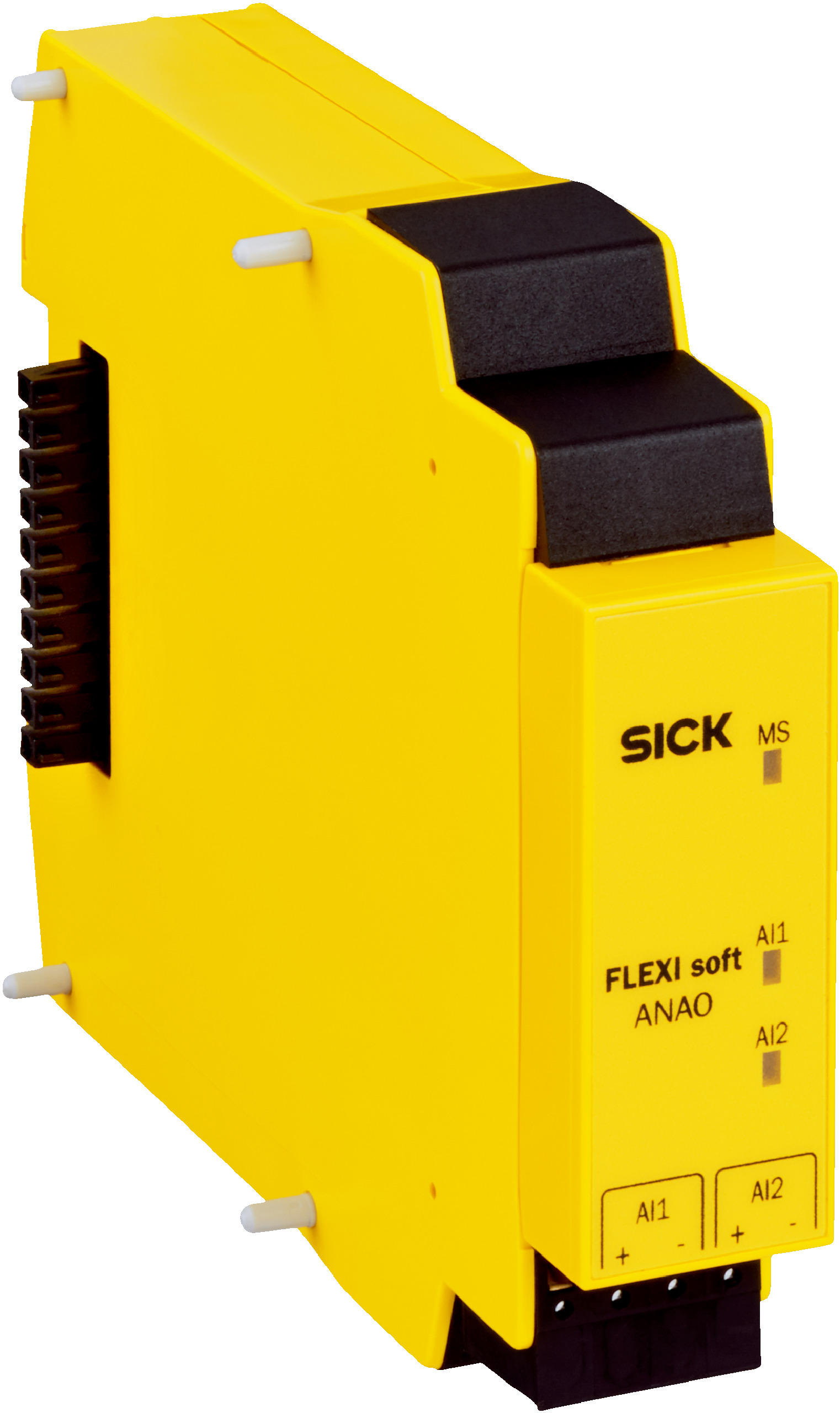

Analog Input Module FX3-ANA020012 | 2 Safe Analog Inputs | SIL 3 Safety Level | Plug-in Spring Terminals | by SICK
The Analog Input Module FX3-ANA020012 features 2 safe analog inputs and is designed for industrial automation systems requiring reliable monitoring. With SIL 3 safety integrity and a protective coating for harsh environments, this module is perfect for safety-related control systems. Its low power consumption and easy configuration via Flexi Soft Designer software make it an ideal choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of safe analog inputs: 2
- Configuration method: Via Flexi Soft Designer software
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 0.166 x 10^-9
- Mission time: 20 years (EN ISO 13849-1)
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 2 W
- Input voltage: ≤ 30 V DC
- Input current: ≤ 30 mA
- Current measuring range: 4 mA to 20 mA
- Current input measuring range: 3.5 mA to 20.5 mA
- Input resistance: 50 Ω
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Resistance to sulfur dioxide and mixed gases per IEC standards
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.117 kg
Key Features
- Analog input module with 2 safe analog inputs
- Configuration via Flexi Soft Designer software
- Protective coating for resistance to sulfur and harsh ambient conditions
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e
- Limit value monitoring and signal range detection functions
- Plug-in spring terminal connection
- Low internal power consumption ≤ 2 W
- Input voltage up to 30 V DC and current up to 30 mA
- Input resistance of 50 Ω
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety-related control systems and electrical standards.
Applications
- Industrial automation systems requiring safe analog input monitoring
- Safety-related control systems with SIL 3 and PL e requirements
- Environments with challenging ambient conditions including sulfur exposure
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-ANA020012 Analog Input Module is available for immediate purchase, ideal for industrial safety and automation applications.
