Analog Module 2 Temp Inputs | 1 Output | 24 VDC | IP20 by Clipsal
Analog module with 2 temperature inputs and 1 output—ideal for industrial automation and process control. Built for versatility, with 24 VDC power and IP20 rating for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

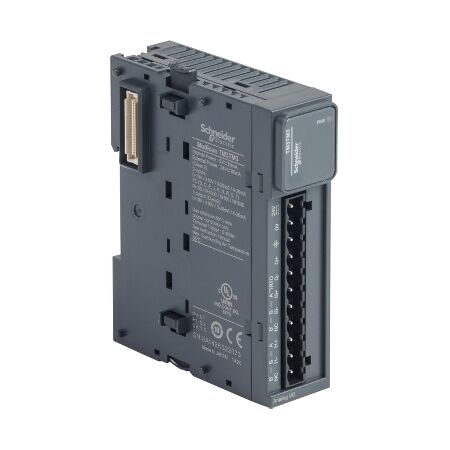

Product Name/Title: Modicon TM3, Input/output analog module, 2 or temperature inputs, 1 output (screw) 24 VDC
Brand: Clipsal
SKU: TM3TM3
Alternatively Known As: Modicon TM3 Analog Module, TM3 Temperature Input Module
Technical Specifications
- Rated Supply Voltage: 24 V DC
- Input Type: Current (4-20 mA, 0-20 mA), Voltage (0-10 V, -10 to 10 V), Thermocouples
- Output Type: Current (4-20 mA, 0-20 mA), Voltage (0-10 V, -10 to 10 V)
- Input Resolution: 16 bits
- Output Resolution: 12 bits
- IP Rating: IP20
- Operating Temperature: -10 to 55 °C
- Dimensions (H x L x W): 90mm x 70mm x 23.6mm
- Weight: 0.115 kg
Key Features
- Supports 2 temperature inputs and 1 output.
- Compatible with Modicon M221, M241, M251, and M262.
- Wide range of input types including thermocouples and voltage/current.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, process control
- General: Any application requiring analog input/output capabilities
Standards & Compliance
- Complies with IEC 61131-2 for safety and performance standards.
Environmental Benefits
- Complies with CE and RoHS regulations.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Modicon TM3 Input/Output Analog Module is available now for immediate purchase. Ideal for industrial automation applications.
