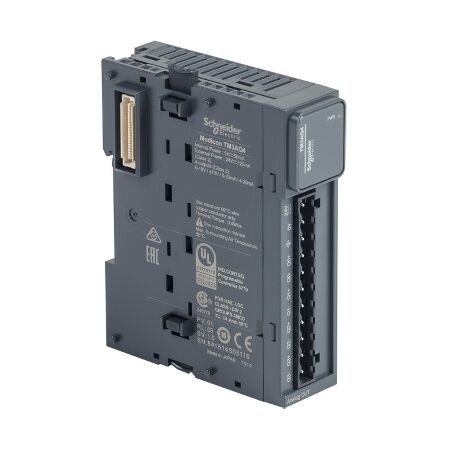

Modicon TM3, Analog output module, 4 outputs (screw) 24 VDC

Analog Output Module 4 Outputs | 24 VDC | IP20 Rated | Modicon TM3 by Clipsal

BRAND: Clipsal

SKU: TM3AQ4

$740.70 List price: $1,111.00

+ −

30 Days Return Delivery Options

Analog output module with 4 outputs and 24 VDC supply—ideal for industrial automation systems. Built for precision control, compatible with Modicon M221, M241, M251, and M262, with IP20 protection.

Description
Attachments

Product Name/Title: Modicon TM3, Analog output module, 4 outputs (screw) 24 VDC

Brand: Clipsal

SKU: TM3AQ4

Alternatively Known As: TM3AQ4, Modicon TM3 Module, Analog Output Module

Technical Specifications

Rated supply voltage: 24 V DC
Current consumption: 40 mA at 5 V DC via bus connector no load
Electrical connection: 11 x 2.5 mm² removable screw terminal block
Temperature drift: +/- 0.01 %FS/°C
Shock resistance: 15 gn for 11 ms
Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
Dimensions (H x L x W): 90mm x 70mm x 23.6mm
Weight: 0.115 kg

Key Features

4 analog outputs: current (4-20 mA, 0-20 mA) and voltage (0-10 V, -10 to 10 V)
Compatible with Modicon M221, M241, M251, and M262
IP20 rated for protection against solid objects

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial automation systems
Control systems for machinery
Process control applications

Standards & Compliance

Complies with IEC 61131-2 for safety and performance standards.

Environmental Benefits

Complies with CE and RoHS regulations for environmental safety.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Analog Output Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3AQ4 (TM3AQ4, 412 Kb) [Download]
