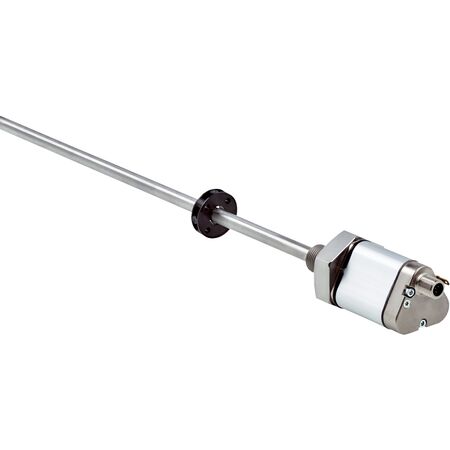

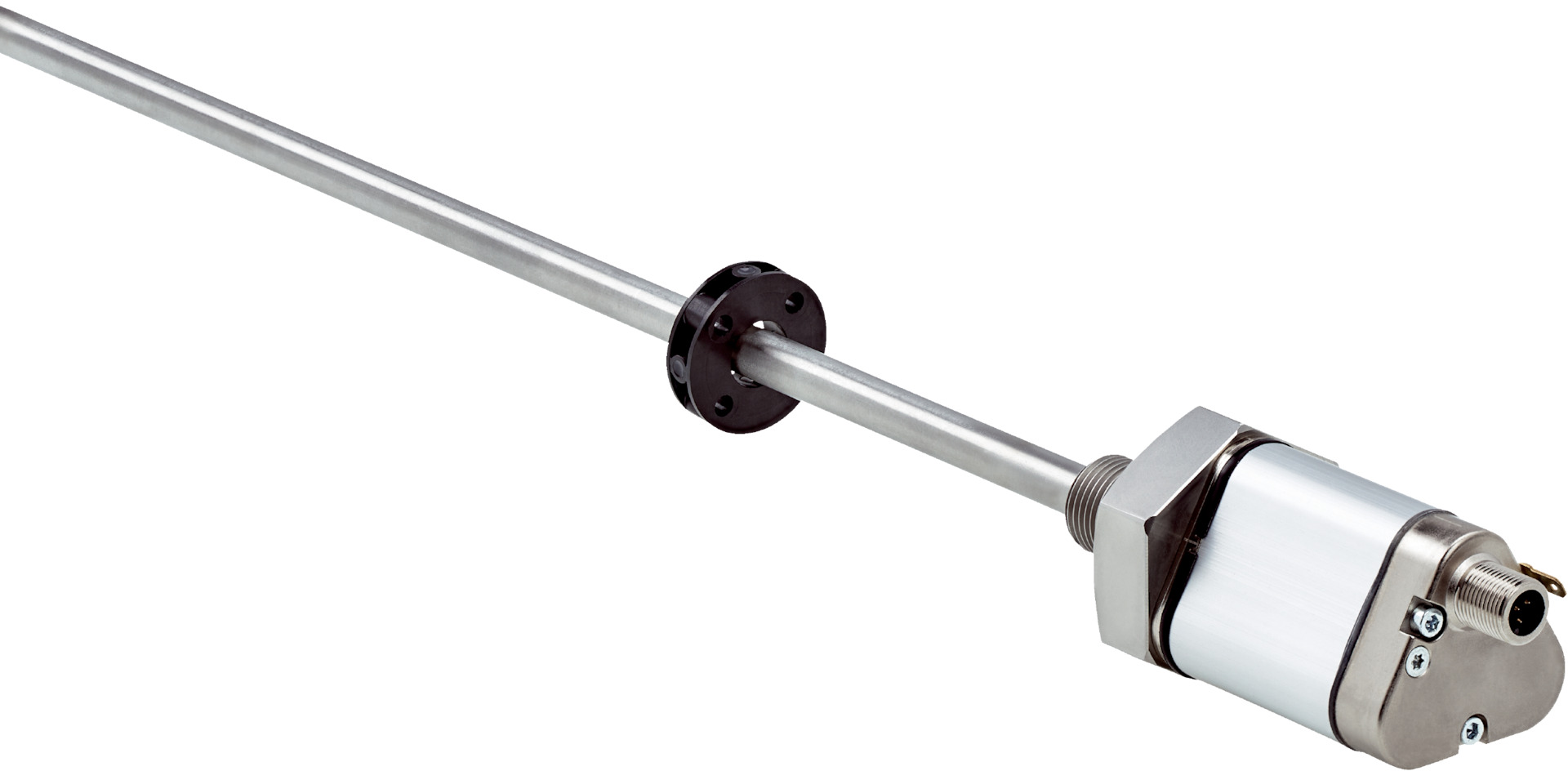

Analog Position Sensor DAXTVN-1200RA1J0J00000 | 0 to 1200 mm Range | IP65/IP67 Rated | High Accuracy | by SICK
The Analog Position Sensor DAXTVN-1200RA1J0J00000 offers a measuring range of 0 to 1200 mm with high accuracy, featuring linearity of ≤ 0.02% F.S. and repeatability of ≤ ±20 µm. Designed for industrial automation, this robust sensor is ideal for hydraulic cylinder position sensing and machine tool positioning, ensuring reliable performance in harsh environments with an IP65/IP67 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 1200 mm
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Output signal: 0 V to 10 V analog voltage
- Supply voltage: 24 V DC (±20%)
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Materials: Stainless steel 1.4404 (AISI 316L) pressure pipe, aluminum anodised housing
- Resistance to shock: 100 g, 6 ms
- Resistance to vibration: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 1.2 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range up to 1200 mm
- Robust mechanical design with stainless steel and aluminum housing
- IP65 / IP67 rated for harsh environments
- Analog voltage output signal 0 V to 10 V
- Fast measuring frequency less than 2 ms
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shock (100 g) and vibration (15 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DAXTVN-1200RA1J0J00000 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
