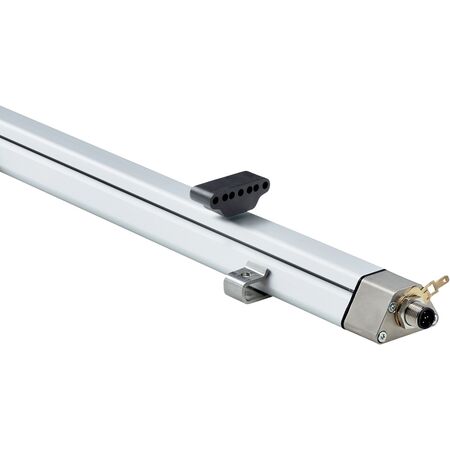

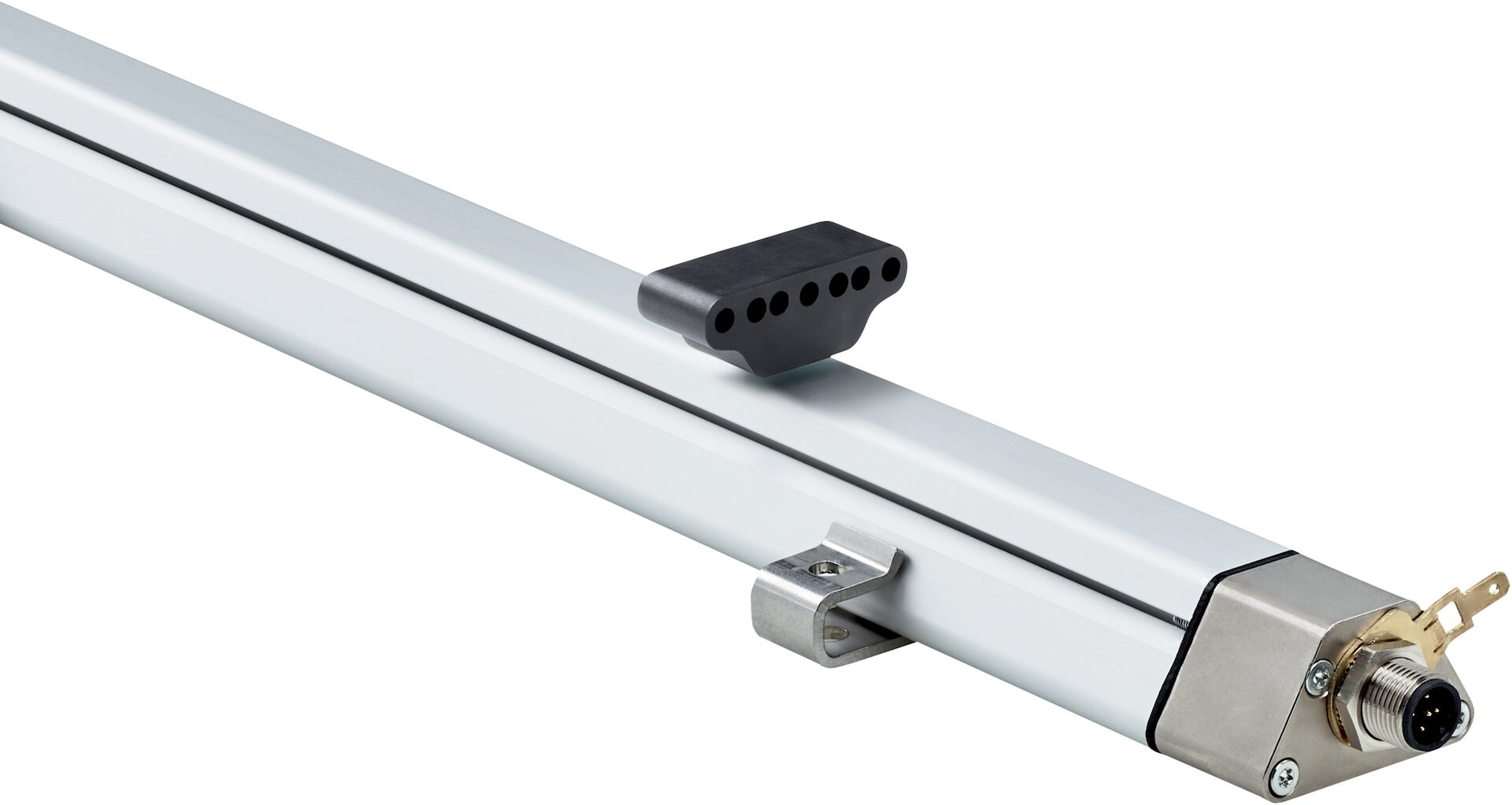

Analog Position Sensor DAXLAN-0310BA4C0000D00 | 0 mm to 310 mm Range | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-0310BA4C0000D00 offers a measuring range of 0 mm to 310 mm with high linearity of ≤ 0.03% F.S. and repeatability of ≤ ± 20 µm. Designed for industrial automation, this robust sensor features an anodised aluminum housing and is IP65/IP67 rated for dust and water protection, making it ideal for precise position measurement in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 310 mm
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Load resistance: 100 Ω to 500 Ω
- Operating temperature: –40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- MTTFD: 123 years
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 8 g / 10–2000 Hz
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. accuracy
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 310 mm
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- IP65 / IP67 rated for dust and water protection
- Operating temperature range from –40 °C to +85 °C
- Analog current output signal from 4 mA to 20 mA
- Reverse polarity and over voltage protection
- High resistance to shocks (100 g, 6 ms) and vibration (8 g / 10–2000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLAN-0310BA4C0000D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
