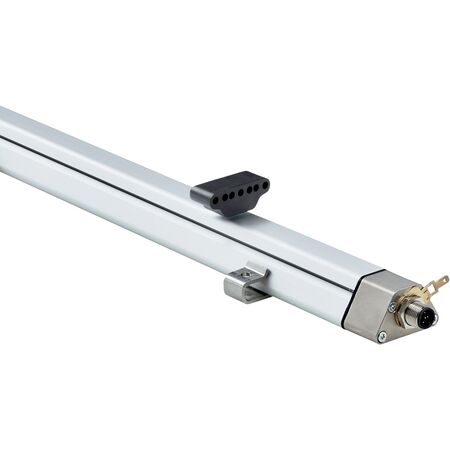

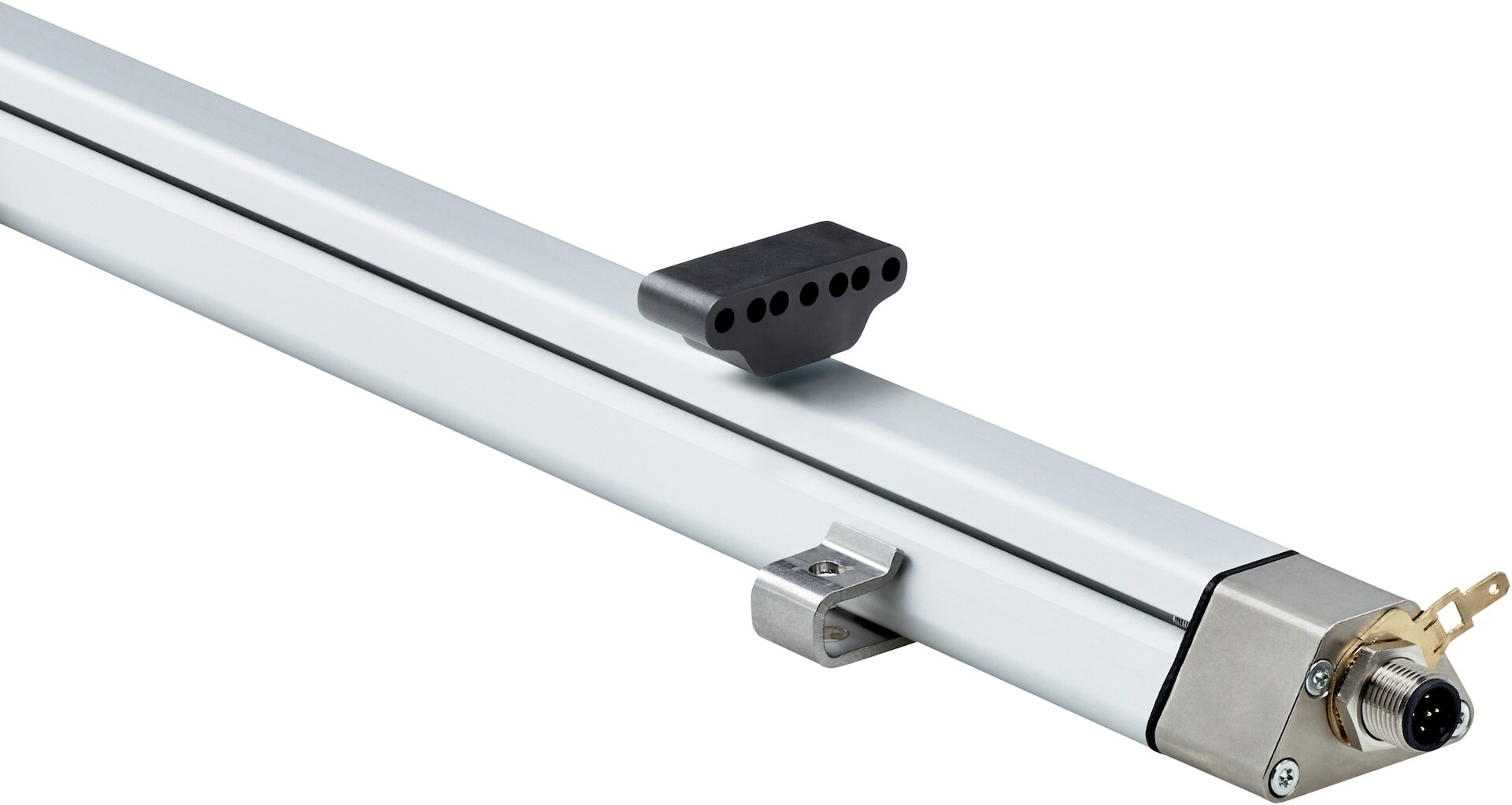

Analog Position Sensor DAXLAN-0450BA480000D00 | 0-450 mm Measuring Range | High Linearity & Repeatability | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-0450BA480000D00 offers a measuring range of 0 mm to 450 mm with high linearity of ≤ 0.03% F.S. and a repeatability of ± 20 µm, making it ideal for industrial automation and precise position measurement. With an analog output signal of 4 mA to 20 mA, this robust sensor is designed for harsh environments, featuring an IP65/IP67 rated enclosure for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 450 mm
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ± 20 µm
- Output signal: 4 mA to 20 mA analog current
- Load resistance: 100 Ω to 500 Ω
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10–2000 Hz
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range of 0 mm to 450 mm with high linearity ≤ 0.03% F.S.
- Repeatability of ± 20 µm for accurate positioning
- Analog current output signal from 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shocks (100 g, 6 ms) and vibration (8 g, 10–2000 Hz)
- IP65 / IP67 rated enclosure for protection against dust and water
- Includes mounting brackets and position magnet
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DAXLAN-0450BA480000D00 analog position sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
