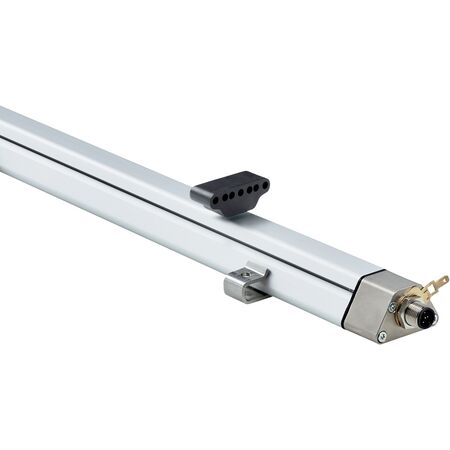

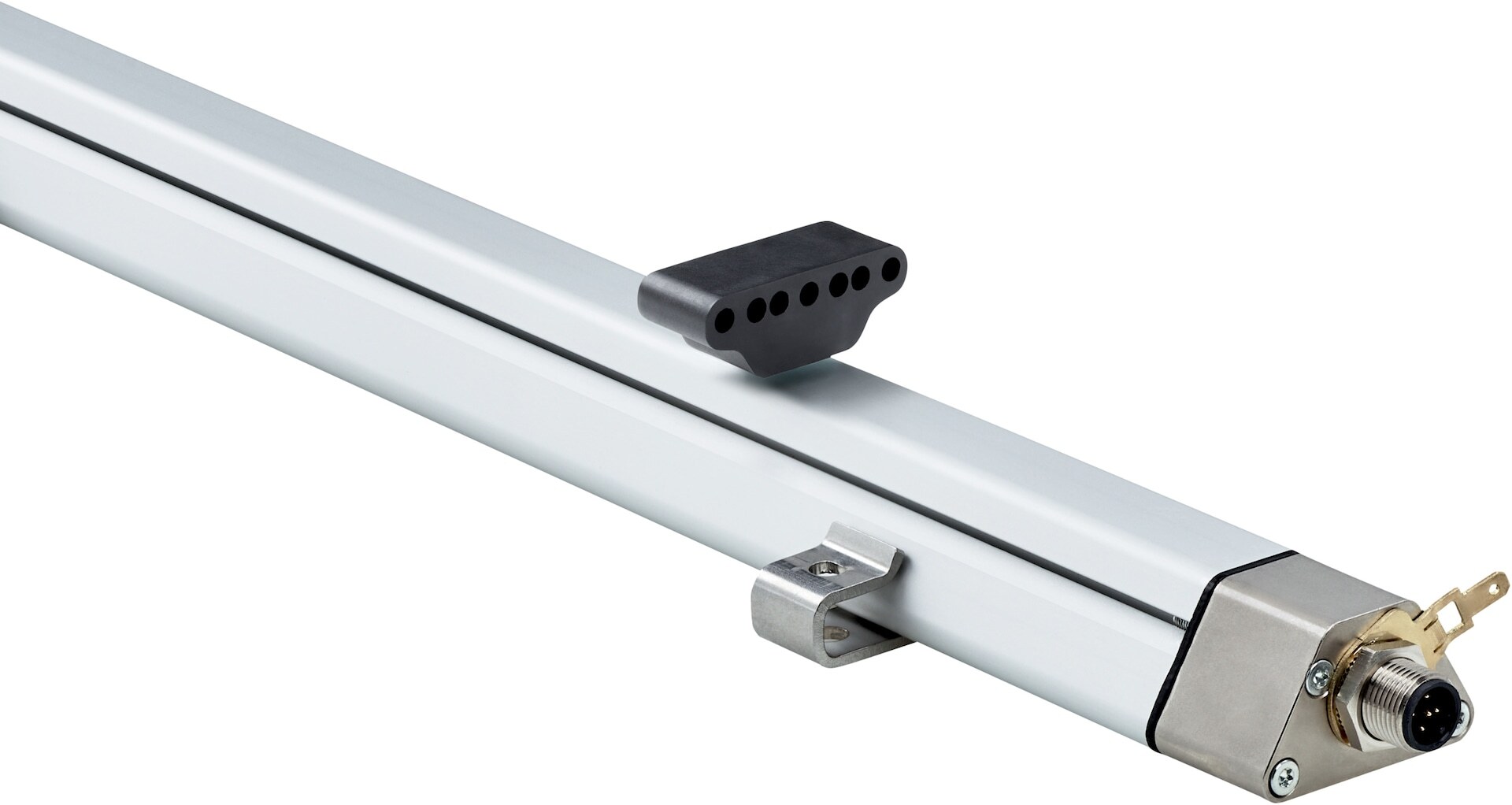

Analog Position Sensor DAXLAN-0550BA4C0000D00 | 0 mm to 550 mm Range | High Linearity & Repeatability | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-0550BA4C0000D00 offers a measuring range of 0 mm to 550 mm with exceptional linearity of ≤ 0.03% F.S. and repeatability of ±20 µm, making it ideal for industrial automation and safety-related positioning. With an analog output signal of 4 mA to 20 mA and robust IP65/IP67 rated enclosure, this sensor ensures reliable performance in harsh environments, perfect for process control and precise position measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 550 mm
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10 to 2000 Hz
- Dimensions (H x L x W): 30mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range of 0 mm to 550 mm with high linearity ≤ 0.03% F.S.
- Repeatability of ±20 µm for accurate positioning
- Analog current output signal from 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for precise position measurement
- Safety-related positioning in machinery
- Process control requiring analog position feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DAXLAN-0550BA4C0000D00 position sensor is available for immediate purchase, ideal for industrial automation and safety-related positioning applications.
