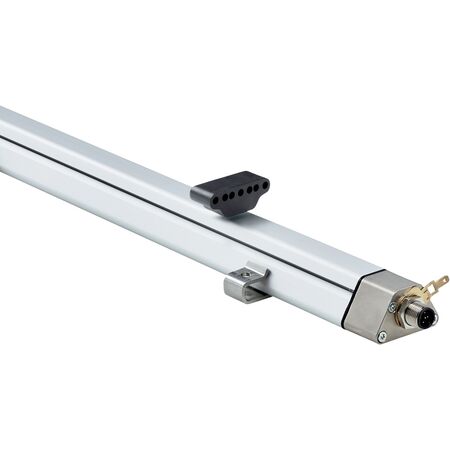

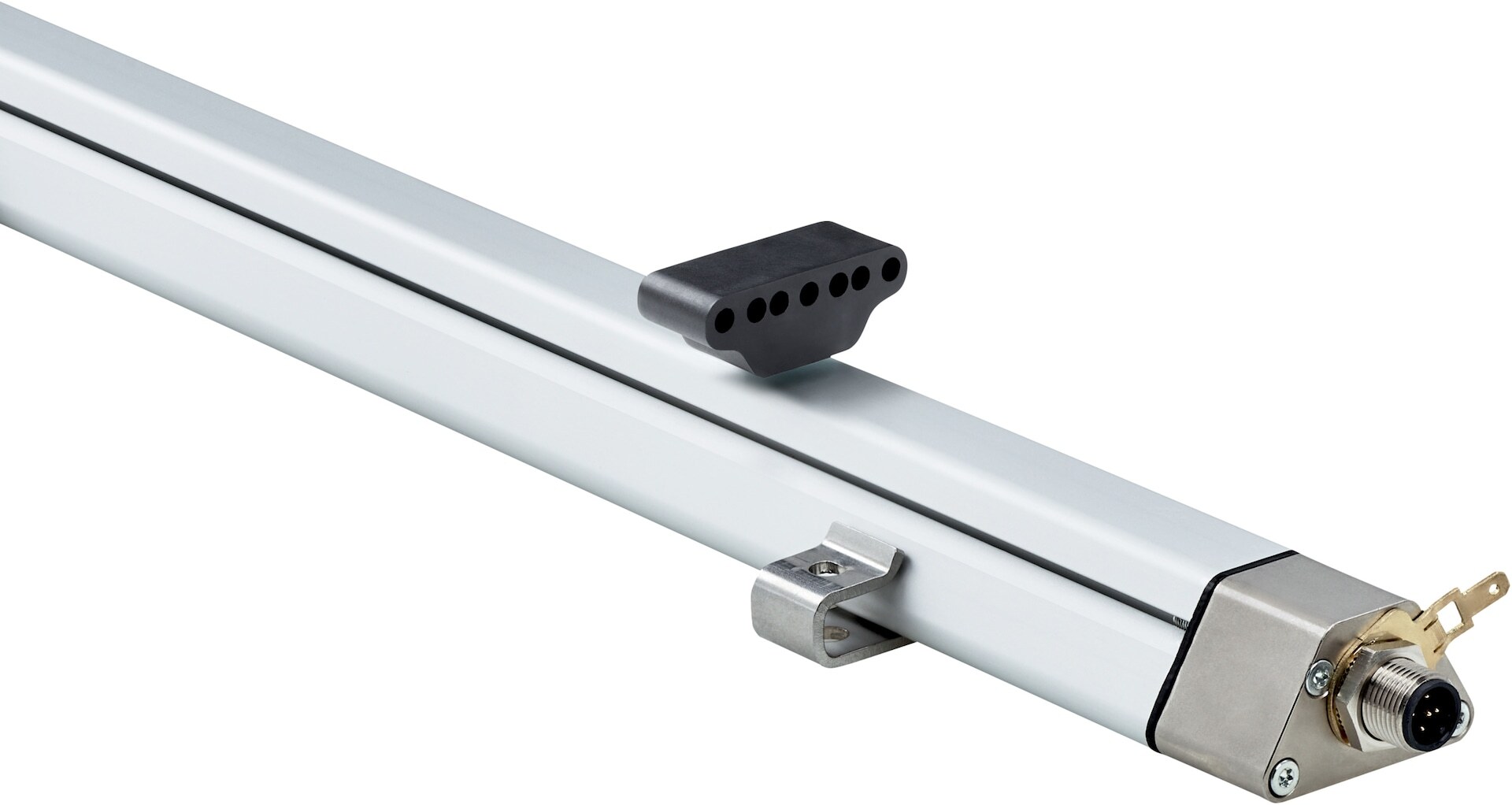

Analog Position Sensor DAXLAN-0750BA480000D00 | 0-750 mm Measuring Range | High Linearity & Repeatability | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-0750BA480000D00 offers a measuring range of 0 mm to 750 mm with exceptional linearity of ≤ 0.03% F.S. and repeatability of ±20 µm, making it ideal for industrial automation and precise position measurement. With an analog output signal of 4 mA to 20 mA and robust IP65/IP67 rated enclosure, this sensor is built for durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 750 mm
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10 to 2000 Hz
- Dielectric strength: 500 V DC
- Over voltage protection: up to 36 V DC
- Load resistance: 100 Ω to 500 Ω
- Dimensions (H x L x W): 20mm x 150mm x 40mm
- Weight: 0.5 kg
Key Features
- Measuring range of 0 mm to 750 mm with high linearity ≤ 0.03% F.S.
- Repeatability of ±20 µm for accurate positioning
- Analog current output signal from 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shock (100 g) and vibration (8 g)
- IP65 / IP67 rated enclosure for dust and water protection
- Reverse polarity and over voltage protection
- Includes mounting brackets and position magnet
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly line monitoring
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLAN-0750BA480000D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
