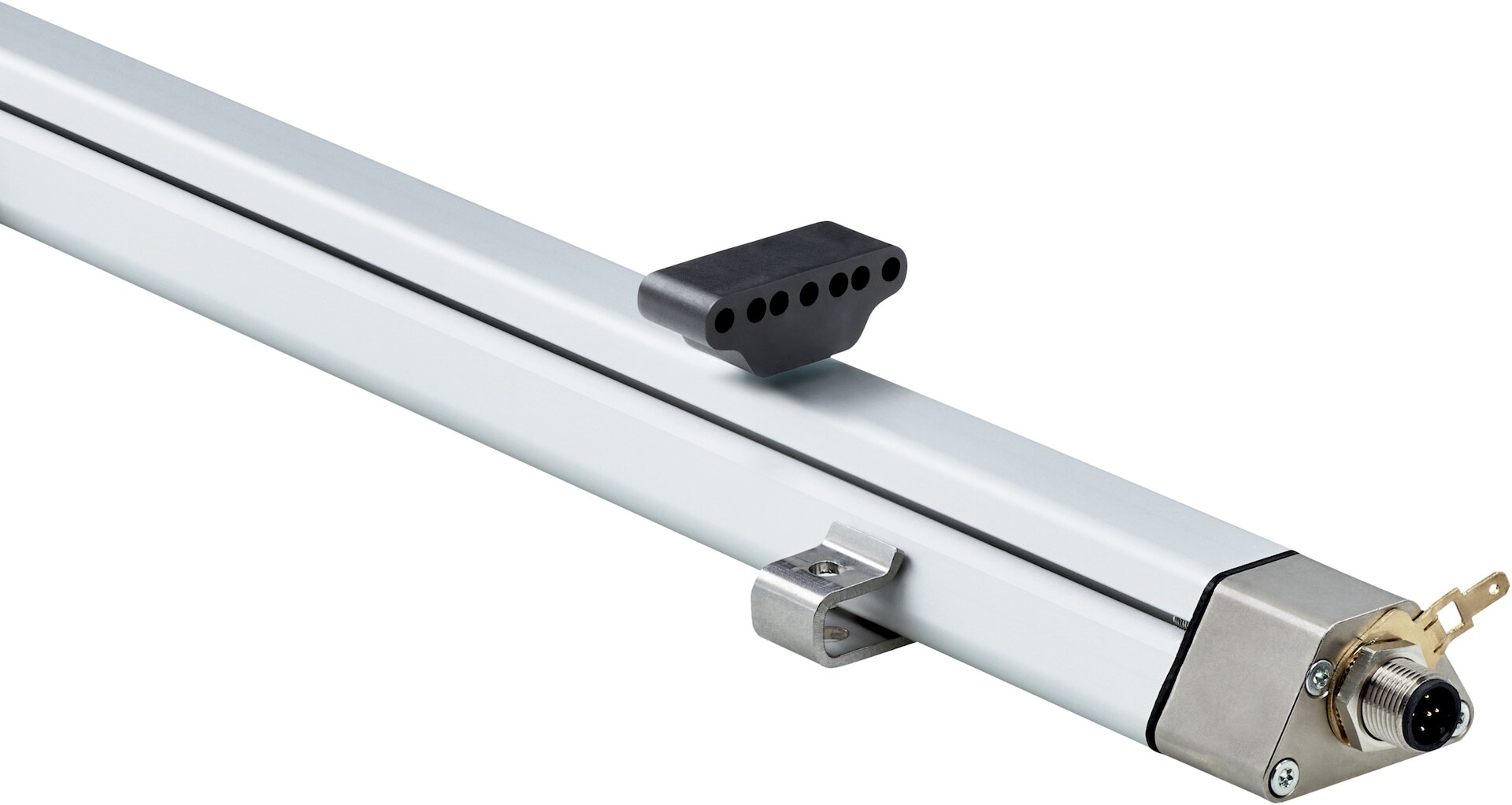

Analog Position Sensor DAXLAN-1150BA4C0000D00 | 0 mm to 1150 mm Range | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-1150BA4C0000D00 offers a measuring range of 0 mm to 1150 mm with high linearity of ≤ 0.03% F.S. and a repeatability of ±20 µm, making it ideal for industrial automation and safety-related positioning applications. With an IP65/IP67 rated enclosure, it ensures durability in harsh environments, while its robust design and efficient analog output signal enhance performance in process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 1150 mm
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10 to 2000 Hz
- Dimensions (H x L x W): 40mm x 200mm x 50mm
- Weight: 1.5 kg
Key Features
- Measuring range of 0 mm to 1150 mm with high linearity ≤ 0.03% F.S.
- Repeatability of ±20 µm for accurate positioning
- Analog output signal 4 mA to 20 mA with one rising output signal
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related positioning in machinery
- Process control requiring analog position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXLAN-1150BA4C0000D00 analog position sensor is available for immediate purchase, ideal for industrial automation and safety-related positioning applications.
