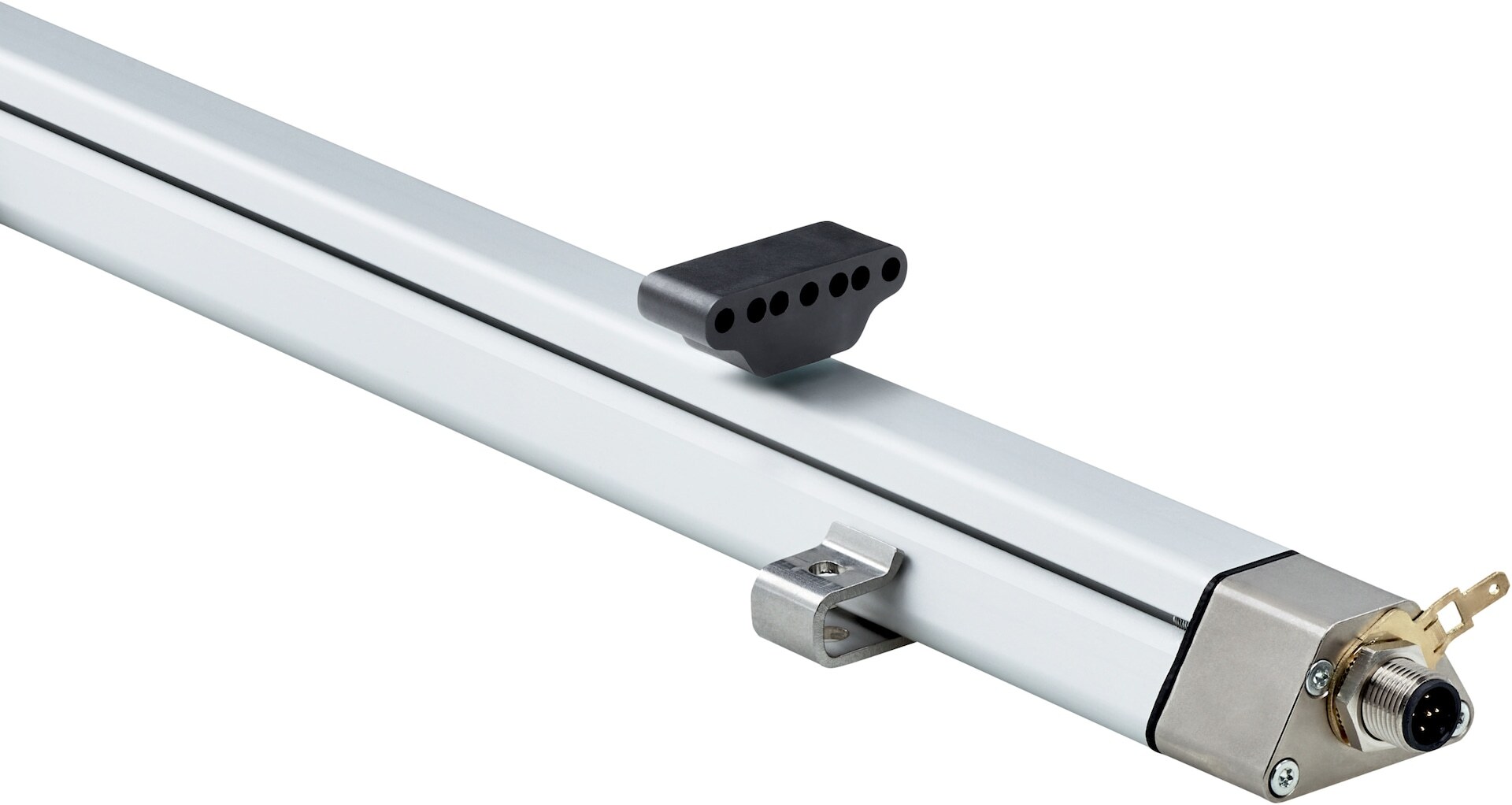

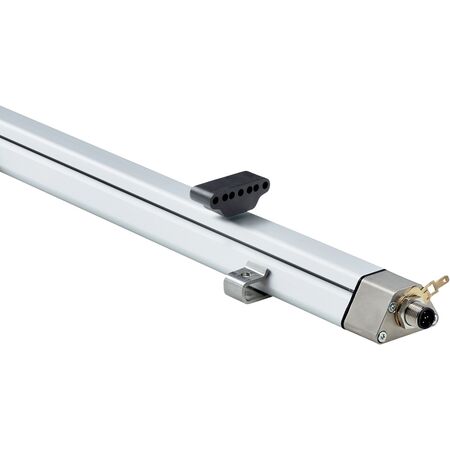

Analog Position Sensor DAXLAN-2300BA4C0000D00 | 0 to 2300 mm Range | IP65/IP67 Rated | by SICK
The Analog Position Sensor DAXLAN-2300BA4C0000D00 offers a measuring range of 0 mm to 2300 mm with high accuracy, featuring linearity of ≤ 0.03% F.S. and repeatability of ≤ ±20 µm. Designed for industrial automation, this robust sensor is ideal for machine tool positioning and material handling, ensuring reliable performance in harsh environments with an IP65/IP67 protection rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 2300 mm
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Protection rating: IP65 / IP67
- Operating temperature: -40 °C to +85 °C
- Resistance to shock: 100 g, 6 ms
- Resistance to vibration: 8 g / 10 to 2000 Hz
- Dimensions (H x L x W): 30mm x 250mm x 40mm
- Weight: 1.5 kg
Key Features
- High accuracy with linearity ≤ 0.03% F.S. and repeatability ≤ ±20 µm
- Measuring range up to 2300 mm
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- IP65 / IP67 rated for protection against dust and water
- Operating temperature range from -40 °C to +85 °C
- Analog current output signal 4 mA to 20 mA
- Fast measuring frequency less than 2 ms
- Reverse polarity and over voltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Material handling and conveyor systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DAXLAN-2300BA4C0000D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
