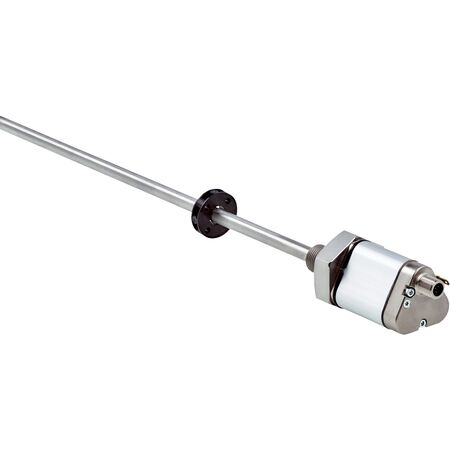

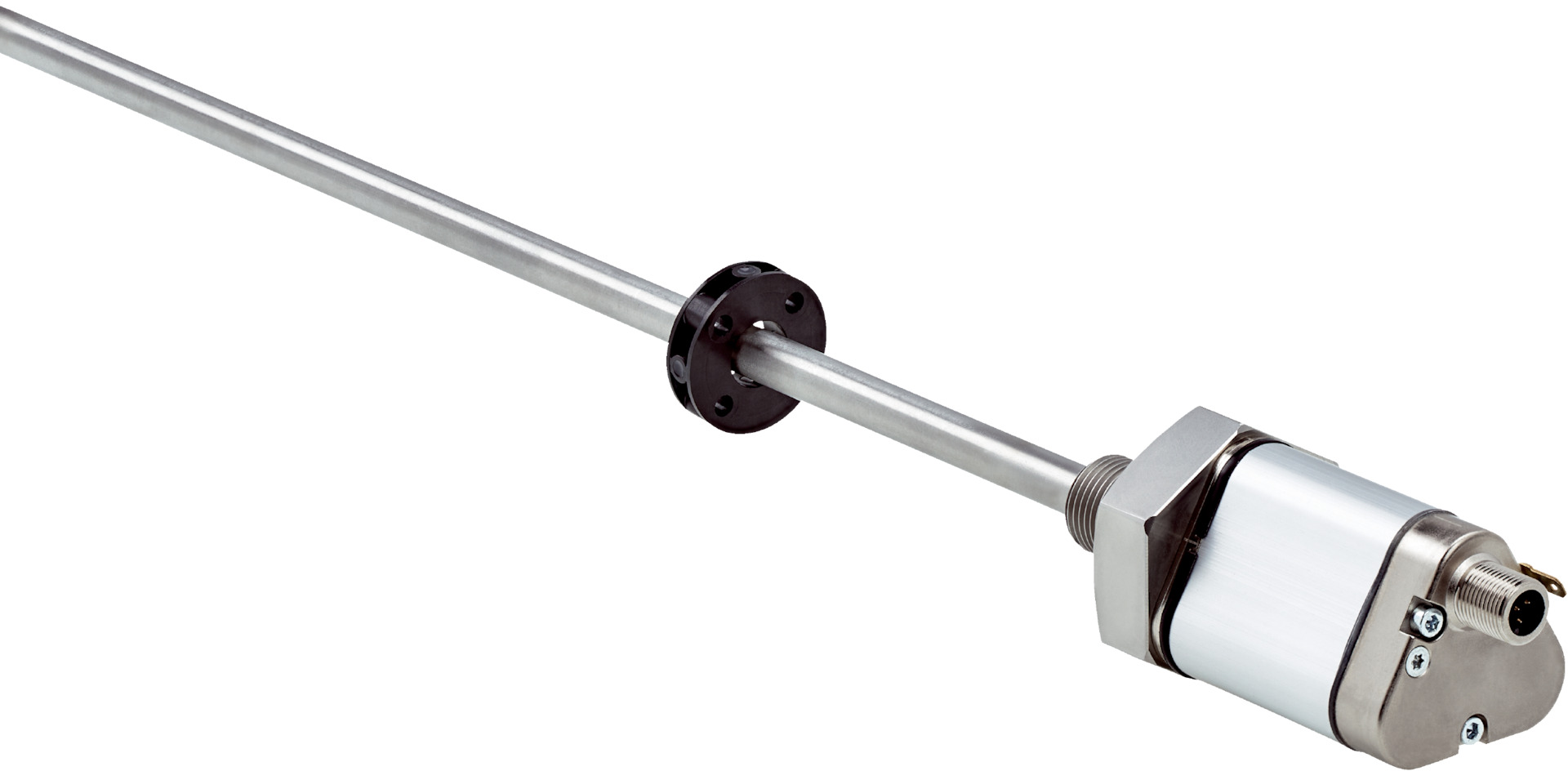

Analog Position Sensor DAXTAN-0310RA1J0J00 | 0-310 mm Measuring Range | IP65/IP67 Rated | High Accuracy | by SICK
The Analog Position Sensor DAXTAN-0310RA1J0J00 is designed for precise position measurement in industrial automation, featuring a measuring range of 0 mm to 310 mm and high accuracy with linearity of ≤ 0.02% F.S. Built with a robust stainless steel and anodised aluminum housing, it is IP65/IP67 rated for protection against dust and water, making it ideal for harsh environments. Perfect for applications like hydraulic cylinder position sensing and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 310 mm
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +65 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Materials: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range of 0 mm to 310 mm
- Robust mechanical design with stainless steel and anodised aluminum housing
- IP65 / IP67 rated for protection against dust and water
- Operating temperature range from -40 °C to +85 °C
- Analog current output signal 4 mA to 20 mA
- Fast measuring frequency less than 2 ms
- Reverse polarity and over voltage protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXTAN-0310RA1J0J00D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
